Resolving resize widget Issue when the Tabber Widget is in use
Resolving the resize widget Issue when the Tabber Widget is in use Introduction When using the Tabber widget, you may encounter issues where other widgets cannot be resized. This guide provides a step-by-step solution to resolve the problem by temporarily removing and recreating the Tabber widget while ensuring all widgets remain functional. Step-by-Step Guide Identify the Problem: Confirm that the issue is with the Tabber widget not allowing the resizing of other widgets on the dashboard. Delete the Tabber Widget: Before deleting the Tabber widget, copy any scripts associated with it. Remove the Tabber widget from the dashboard. Resize the Widgets: Resize the other widgets on the dashboard as needed. Ensure that the widgets are properly sized before re-adding the Tabber widget. Recreate the Tabber Widget: Add the Tabber widget back to the dashboard. Paste the previously copied script into the new Tabber widget. Verify the Solution: Check if the resizing issue is resolved in the duplicated dashboard. Ensure that the Tabber widget and other widgets are functioning correctly. Troubleshooting Tips Edit Mode Issues: If you cannot change the size of widgets in edit mode, try adding another widget next to the one you want to resize. This can sometimes resolve resizing issues. Conclusion By following the steps, you can restore full resizing functionality. If issues persist, try adding another widget nearby as a workaround. This ensures a smooth and flexible dashboard layout.Resolving Limited Column Retrieval in Sisense API Connection to Jira
This article addresses the issue where a Sisense API connection to Jira only retrieves native columns and does not include custom column fields. It provides a step-by-step solution to resolve this issue and ensure that custom fields columns are retrieved.

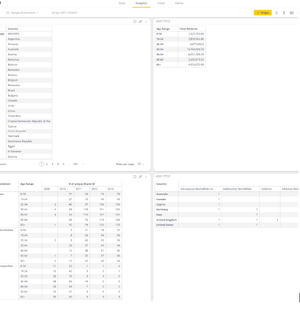

Troubleshooting the issue with incorrect Pivot Layout for Expand Pivot On Dashboard PDF
The reason we have created this guide is to increase the awareness of our customers on how to properly extend multiple pivot widgets for Expand Pivot On Dashboard PDF to ensure you are doing it properly to avoid potential issues with use cases when you have a couple of Pivot Tables on the same dashboard and some Pivots are extended as expected and some have broken layout.Build Stability Improvements on Heavy Loaded Systems
Symptoms Relevant for Linux Below are a couple of select symptoms your system could be experiencing under a big load with simultaneous builds. Please note the list is not exhaustive: Build failures over random cubes or a couple of cubes that are being rebuilt manually successfully CubeIsUnreachable error Failure due to Build Service restart Diagnosis Build flow is connected to three main services: Build: Takes care of triggering builds and moving logs between the Pod and UI Management: Creates ec-bld pod and takes care of Kubernetes level communication over the flow Ec: <name_of_the_cube>-bld - actual cube import process which creates the folder, makes import If memory consumption of the ec-bld pod is being controlled by the DataGroup Max RAM for Build (more in-depth article here) and affects just this cube, then Build/Management works for all builds running on the system. Sometimes when there are 4+ cubes that run in parallel, Build/Management services could be under heavy load and require additional RAM. Since both of the services are Java based they have a default memory limit mechanism that allows 500 MB of RAM to be used. If the service needs more, it could be throttling which can affect defined timeouts or cause service restart. If you want to ensure that this is the case, please check graphana for build/management services when builds fail. Linked is additional information on how to use Grafana to troubleshoot performance issues. Keep in mind that by default services are limited to 500 MB but could consume more since there are additional parts of the service that are not Java-based and Java limits can peak from time to time. However, if you see that the service is under load, it is a good idea to allocate more RAM for stability improvements. Solution Increase the Memory Limits for the Build and Management services. Since this is a Java service there are two places to update: Kubernetes deployment limits Java service on the Sisense Configuration side To update Memory Limits please follow the steps below: 1. SSH to the server 2. Execute line 1 for build or line 2 for management: kubectl edit deployment -n <namespace> build kubectl edit deployment -n <namespace> management 3. Find "resources: limits" and update memory size to 4000 (press “i” on the keyboard to enter edit mode → edit value → ESC to exit edit mode → use “:wq!” to exit and save changes). 4. Build/management pod will automatically restart after deployment modification. 5. Navigate to Admin → System management → Configuration → Build → Memory limit for build pod and Navigate to Admin → System management → Configuration → Advanced Management params → Memory limit for management pod. Set the value to be 1000 lower than the value set in step #3 for the deployment. 6. Save settings. Tips: Please ensure that the Memory Limit value is correctly entered. If there is a problem with the value, the service will not start. Please keep in mind that the Deployment value should be 1000m bigger than the Configuration value. If you need any additional help, please contact Sisense Support.
