Color the Row and Value fields of a Pivot Table

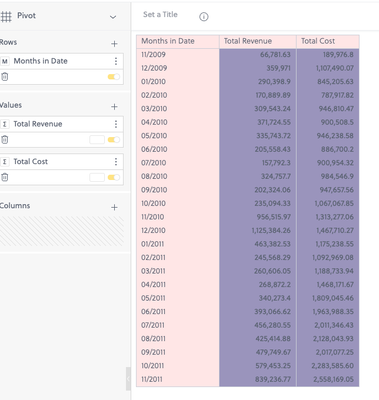

This article will show you how to quickly color a pivot table into two sections: by Row and by Value

1. Build your pivot table.

2. In the widget editor, add the widget script below. Information on how to add a widget script here: https://sisense.dev/guides/js/extensions.html





widget.transformPivot(
    {
        type: ['value','member']
    },

    function setCellBackground(metadata, cell) {


		if(metadata.type == 'value'){
        cell.style = cell.style || {};
        cell.style.backgroundColor = '#9A94BC';
		} else {
		cell.style = cell.style || {};
        cell.style.backgroundColor = '#ffe6e6';
		}

    }
);





3. Change the colors by changing the color codes above and you're all set!

 
Note: If you'd like to target different parts of the pivot table, refer to our Pivot 2 API documentation.

Updated 02-05-2024
