Change the background color of the Pivot cell on value Windows
Change the background color of the Pivot cell on value Windows

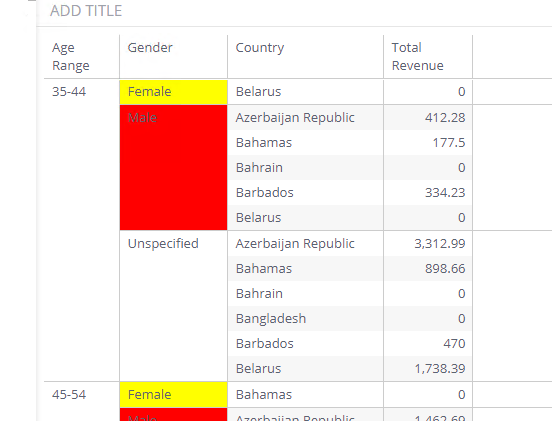

If you want to change the background color for categories on value, like in the picture below
You can use such a script:
var columns = [2]; //select the date columns that should be transformed
widget.on('ready', function (se, ev) {
$.each(columns, function (index, value) {
var num = $("tbody tr:first", element).children().length - value;
$("tbody tr", element).not('.wrapper, .p-head-content').each(function () {
var cell = $(this).children().last();
for (var a = 0; a < num; a++) {
cell = cell.prev();
}
var cell_value = cell.text()
// change the values and color below
if (cell_value.includes('Male')) {
$(cell).css("background-color", 'red');
} else if (cell_value.includes('Female')) {
$(cell).css("background-color", 'yellow');
}else if (cell_value.includes('Unspecified')) {
$(cell).css("background-color", 'white');
}
});
});
});
For your Pivot widget, press the Edit button in the upper right corner of the widget (pencil icon), press the three dots in the upper right corner, select Edit Script from the menu, and paste the code. Then press the Save button.
Have a good day!
Disclaimer: This post outlines a potential custom workaround for specific use cases. The solution may not work in all scenarios or Sisense versions, so we strongly recommend testing it in your environment before deployment. The content is provided "as-is" without any warranty, including security or fitness for a particular purpose. Custom coding is involved, which falls outside Sisense's warranty and support.
