Color a column chart based on another formula
If you need to color columns in a column chart based on a different formula you will need to use the following solution.
For this example, we will color the columns that calculate [Total Cost] for the [City] by another value, that is calculated by the formula count([# Visits])
- You need to create 5 additional formulas using the function QUARTILE
- In the formula specify the following:
QUARTILE([Dimension], [Formula], 0)
[Dimension] - [City]
For the formula, it will be - [# of unique # Visits]
- In the first formula, you need to define 0 quartile - it will return the minimum value
- Copy the formula 4 times to get the values for all the quartiles. In each formula change the number of the quartile from 0 until 4. You will have the following formulas:
QUARTILE([Dimension], [Formula], 0)
QUARTILE([Dimension], [Formula], 1)
QUARTILE([Dimension], [Formula], 2)
QUARTILE([Dimension], [Formula], 3)
QUARTILE([Dimension], [Formula], 4)

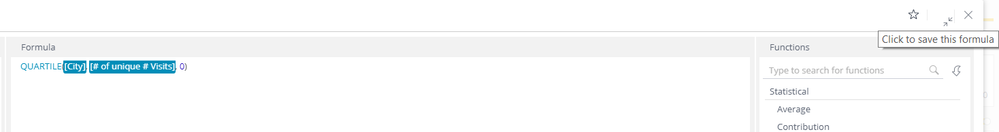

Make sure you save all the formulas:

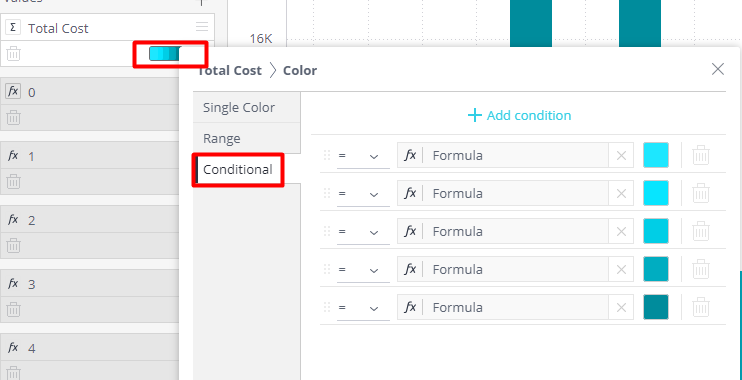

- Go to the conditional formatting of the main formula in our case sum([Cost]) and modify the conditional formatting:
6. You will need to specify 5 conditions.
Specify the following formula for the first condition:
CASE
WHEN [# of unique # Visits] = [Quart0] THEN [Total Cost]
ELSE 0
END
Second condition:
CASE
WHEN [# of unique # Visits] <= [Qurt1] THEN [Total Cost]
ELSE 0
END
Third condition:
CASE
WHEN [# of unique # Visits] <= [Quart2] THEN [Total Cost]
ELSE 0
END
Fourth condition:
CASE
WHEN [# of unique # Visits]<=[Quart3] THEN [Total Cost]
ELSE 0
END
Fifth condition:
CASE
WHEN [# of unique # Visits] <= [Quart4] THEN [Total Cost]
ELSE 0
END
- The [Quart0-4] (is the saved formula for the 0-4 quartile that we saved at step 4)

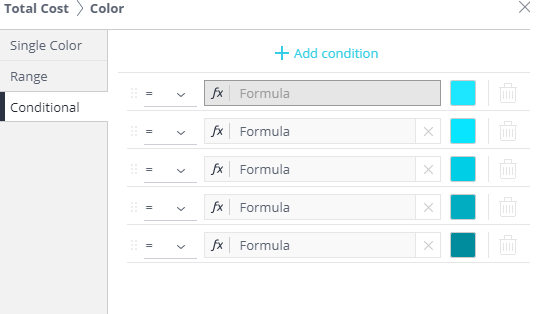

- Specify the colors accordingly:
​

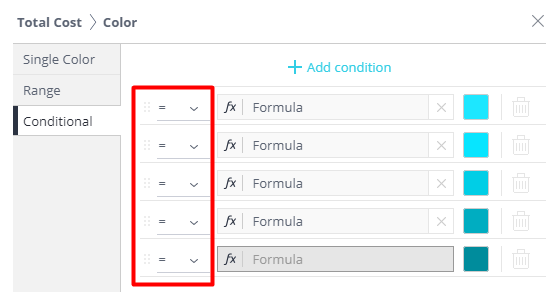

- Make sure that all the conditions are set to equal:

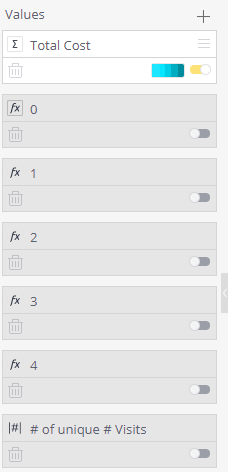

Then you can disable the formulas to leave only the relevant columns on the widget:

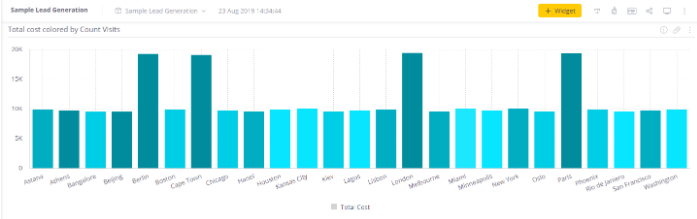

As a result, you have columns that are colored according to the calculation in another formula:
