How to apply color to 'Break by' legends based on another column.

Hey merinsverghese ,

There are a few ways to do this (like sending additional jaql queries in the widget script, but I think the more simple and efficient way is below (despite feeling a bit more hacky):

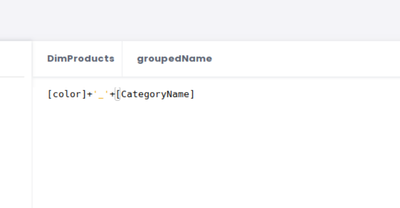

In the datamodel, you'll need to create a new column indicating the grouping "<group>_<item>" to use as the break_by:

Then we can create 'colorConfiguration' based on the text for each value before the '_'. We'll assign each unique category a color based on the dashboard pallette (colors) and then use similar logic to run through the categories.

Updated widget script:



function onlyUnique(value, index, array) {
	return array.indexOf(value) === index
}


widget.on('processresult', (w, args) => {
	let colourGroups = args.result.series.map((s) => { return s.name.split('_')[0] })
	let uniqueColourGroups = colourGroups.filter(onlyUnique)
	let colors = widget.dashboard.style.$$colors

	let colorConfiguration = uniqueColourGroups.map((v, i) => {
		return {
			category: v,
			groupColor: colors[i]
		}
	})

	let l = args.result.series.length
	let l2 = colorConfiguration.length
	for (let i = 0; i < l; i++) {
		let bar = args.result.series[i]
		for (let j = 0; j < l2; j++) {
			let colorConfigRule = colorConfiguration[j]
			if (colorConfigRule.category === bar.name.split('_')[0]) {
				bar.color = colorConfigRule.groupColor
				bar.name = bar.name.split('_')[1]
				bar.data.forEach((d) => {
					d.color = colorConfigRule.groupColor
					d.borderColor = 'black'
					d.borderWidth = 1
				})
			}
		}
	}
})

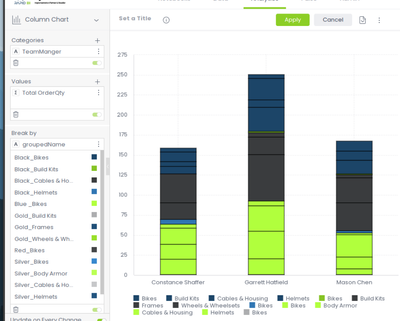

 Which results in:

A few things:

• this will break if you don't have a '_' in every value.
• this will probably break if you have nothing after or before the '_'
• you probably want to test different scenarios around this, as there is a bit going on here and I can't guarantee this will work in 100% of cases.

If you need any additional customization - feel free to take us up on our free 30-minute consult: https://www.rapidbi.com.au/sisense-add-ons/Services/Free-30-Minute-Sisense-Consultation/

Let me know how you go?

Thanks,

Daniel
