Adding presets to allow for faster date filtering.

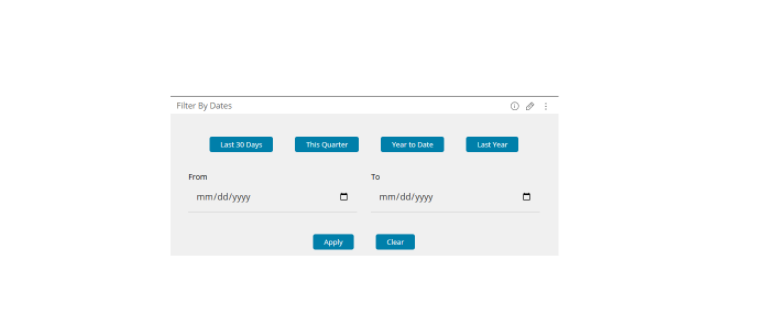

We have some dashboards that have widgets as filters. One of these is a Blox widget that functions as a date filter, which I created with help from the community here. I recently added presets to the date filter to make it easier and faster to apply date filtering.
- Create a Blox Widget
- Paste the script below in the script editor section.
{ "style": ".blox-slides button:hover{background-color:#014E66 !important;} .date-input-container { position: relative; } .date-input-container input[type='date'] { cursor: pointer; } .date-input-container::before { content: ''; position: absolute; top: 0; left: 0; right: 0; bottom: 0; z-index: 1; cursor: pointer; } .date-input-container input::-webkit-calendar-picker-indicator { opacity: 0; position: absolute; right: 10px; width: 20px; height: 20px; cursor: pointer; z-index: 2; }", "title": "", "showCarousel": true, "carouselAnimation": { "showButtons": false }, "script": "setTimeout(function() { const fromInput = document.getElementById('SelectVal_from'); const toInput = document.getElementById('SelectVal_to'); function formatDate(date) { const year = date.getFullYear(); const month = String(date.getMonth() + 1).padStart(2, '0'); const day = String(date.getDate()).padStart(2, '0'); return year + '-' + month + '-' + day; } function setDates(fromDate, toDate) { if (fromInput) fromInput.value = formatDate(fromDate); if (toInput) toInput.value = formatDate(toDate); } function getDateRanges() { const today = new Date(); const currentYear = today.getFullYear(); const currentMonth = today.getMonth(); const currentQuarter = Math.floor(currentMonth / 3); return { last30days: { from: new Date(today.getTime() - 30 * 24 * 60 * 60 * 1000), to: today }, quarter: { from: new Date(currentYear, currentQuarter * 3, 1), to: new Date(currentYear, (currentQuarter + 1) * 3, 0) }, ytd: { from: new Date(currentYear, 0, 1), to: today }, lastyear: { from: new Date(currentYear - 1, 0, 1), to: new Date(currentYear - 1, 11, 31) } }; } const ranges = getDateRanges(); document.querySelectorAll('[data-filter-type]').forEach(function(btn) { btn.addEventListener('click', function() { const filterType = this.getAttribute('data-filter-type'); if (ranges[filterType]) { setDates(ranges[filterType].from, ranges[filterType].to); } }); }); if (fromInput) { fromInput.addEventListener('click', function(e) { if (e.target.tagName === 'INPUT') { e.target.showPicker ? e.target.showPicker() : e.target.click(); } }); fromInput.style.cursor = 'pointer'; } if (toInput) { toInput.addEventListener('click', function(e) { if (e.target.tagName === 'INPUT') { e.target.showPicker ? e.target.showPicker() : e.target.click(); } }); toInput.style.cursor = 'pointer'; } }, 1000);", "body": [ { "type": "Container", "width": "90%", "style": { "margin": "0 auto" }, "items": [ { "type": "ActionSet", "actions": [ { "type": "date-preset", "title": "Last 30 Days", "style": { "color": "white", "background-color": "#007FAA" }, "data": { "FilterType": "last30days", "FilterFields": [ "[Dm_dates.date_data (Calendar)]" ] } }, { "type": "date-preset", "title": "This Quarter", "style": { "color": "white", "background-color": "#007FAA" }, "data": { "FilterType": "quarter", "FilterFields": [ "[Dm_dates.date_data (Calendar)]" ] } }, { "type": "date-preset", "title": "Year to Date", "style": { "color": "white", "background-color": "#007FAA" }, "data": { "FilterType": "ytd", "FilterFields": [ "[Dm_dates.date_data (Calendar)]" ] } }, { "type": "date-preset", "title": "Last Year", "style": { "color": "white", "background-color": "#007FAA" }, "data": { "FilterType": "lastyear", "FilterFields": [ "[Dm_dates.date_data (Calendar)]" ] } } ] }, { "type": "Container", "style": { "display": "flex", "flexDirection": "row", "justifyContent": "space-between", "marginTop": "20px", "gap": "10px" }, "items": [ { "type": "Container", "style": { "width": "48%" }, "items": [ { "type": "TextBlock", "text": "From", "weight": "lighter", "color": "black" }, { "type": "Container", "style": { "position": "relative" }, "items": [ { "type": "Input.Date", "id": "SelectVal_from", "placeholder": "mm/dd/yyyy", "calendar": true, "style": { "width": "100%", "padding": "14px", "background-color": "#F4F4F8", "border-radius": "8px", "border": "1px solid #ccc", "font-size": "16px", "cursor": "pointer" } } ] } ] }, { "type": "Container", "style": { "width": "48%" }, "items": [ { "type": "TextBlock", "text": "To", "weight": "lighter", "color": "black" }, { "type": "Container", "style": { "position": "relative" }, "items": [ { "type": "Input.Date", "id": "SelectVal_to", "placeholder": "mm/dd/yyyy", "calendar": true, "style": { "width": "100%", "padding": "14px", "background-color": "#F4F4F8", "border-radius": "8px", "border": "1px solid #ccc", "font-size": "16px", "cursor": "pointer" } } ] } ] } ] }, { "type": "ActionSet", "style": { "marginTop": "20px", "text-align": "center" }, "actions": [ { "type": "DateX", "id": "submit_btn", "title": "Apply", "style": { "color": "white", "background-color": "#007FAA" }, "data": { "FilterFields": [ "[Dm_dates.date_data (Calendar)]" ] } }, { "type": "filter-date-clear", "title": "Clear", "style": { "color": "white", "background-color": "#007FAA" }, "data": { "FilterFields": [ "[Dm_dates.date_data (Calendar)]" ] } } ] } ] } ] }
-
Create the necessary actions for the buttons to work:
- date-preset
const filterType = payload.data.FilterType; const filterDims = payload.data.FilterFields; const dash = payload.widget.dashboard; const now = new Date(); const yyyy = now.getFullYear(); const mm = String(now.getMonth() + 1).padStart(2, '0'); const dd = String(now.getDate()).padStart(2, '0'); const today = `${yyyy}-${mm}-${dd}`; let fromDate = ''; let toDate = today; //Year to date if (filterType === 'ytd') { fromDate = `${yyyy}-01-01`; //Quarter } else if (filterType === 'quarter') { const q = Math.floor(now.getMonth() / 3); const startMonth = q * 3 + 1; fromDate = `${yyyy}-${String(startMonth).padStart(2, '0')}-01`; //Last Year } else if (filterType === 'lastyear') { fromDate = `${yyyy - 1}-01-01`; toDate = `${yyyy - 1}-12-31`; // Last 30 days: from 30 days ago to today } else if (filterType === 'last30days') { const pastDate = new Date(now); pastDate.setDate(pastDate.getDate() - 30); const pastY = pastDate.getFullYear(); const pastM = String(pastDate.getMonth() + 1).padStart(2, '0'); const pastD = String(pastDate.getDate()).padStart(2, '0'); fromDate = `${pastY}-${pastM}-${pastD}`; } else { console.log('Unknown FilterType:', filterType); if (typeof sendResponse === 'function') sendResponse(false); return; } let newFilter = {}; $('#SelectVal_from').val(fromDate); $('#SelectVal_to').val(toDate); newFilter = { jaql: { dim: "", filter: { from: fromDate, to: toDate } } }; filterDims.forEach(function(dim) { newFilter.jaql.dim = dim; dash.filters.update(newFilter, { refresh: true, save: true }); });
- Datex -- Apply button
var today = new Date(); var dd = String(today.getDate()).padStart(2, '0'); var mm = String(today.getMonth() + 1).padStart(2, '0'); //January is 0! var yyyy = today.getFullYear(); today = yyyy + '-' + mm + '-' + dd; const filVal_from = payload.data.SelectVal_from == '' ? '1800-01-01' : payload.data.SelectVal_from; const filVal_to = payload.data.SelectVal_to == '' ? '2100-01-01' : payload.data.SelectVal_to; const filterDims = payload.data.FilterFields; const dash = payload.widget.dashboard; let newFilter = {}; console.log(filVal_from); console.log(filVal_to); newFilter = { jaql: { dim: "", filter: { from: filVal_from, to: filVal_to } } }; filterDims.forEach(function (dim) { newFilter.jaql.dim = dim; dash.filters.update(newFilter, { refresh: true, save: true }) })
- Clear dates
var today = new Date(); var dd = String(today.getDate()).padStart(2, '0'); var mm = String(today.getMonth() + 1).padStart(2, '0'); //January is 0! var yyyy = today.getFullYear(); today = yyyy + '-' + mm + '-' + dd; const filVal_from = "1800-01-01" const filVal_to = '2100-01-01' const filterDims = payload.data.FilterFields; const dash = payload.widget.dashboard; let newFilter = {}; newFilter = { jaql: { dim: "", filter: { from: filVal_from, to: filVal_to } } }; $('#SelectVal_from').val(''); $('#SelectVal_to').val(''); filterDims.forEach(function (dim) { newFilter.jaql.dim = dim; dash.filters.update(newFilter, { refresh: true, save: true }) })
- Save everything and try it out.
- date-preset
