UserReplaceTool - Automating Dashboard Ownership Transfers - Useful for Deleting User Accounts
Managing and deleting user accounts in Sisense can create manual processes when users leave an organization or change roles. A frequent issue is the reassignment of dashboard ownership to prevent losing Sisense dashboards when a given user account is deleted, as deleting a Sisense user will delete all dashboards owned by that user. The UserReplaceTool addresses this task by automating the transfer of dashboard ownership of all dashboards owned by a given user, ensuring continuity and data integrity. UserReplaceTool is a Python-based, API-based Tool solution designed to seamlessly transfer the ownership of dashboards and data models from one user to another in Sisense. This tool simplifies and automates this process, allowing organizations to reassign dashboard ownership without manual processes or the risk of losing dashboards and widgets. All components are accomplished by using Sisense API endpoint requests.Adding additional dimensions to the Scatter Map widget tooltip
Adding additional dimensions to the Scatter Map widget tooltip Additional dimensions can be added to the hover tooltip of the Scatter Map widget type, beyond the default limit of three, to include more information from other dimensions about a location in a Scatter Map widget. This can be accomplished by using a combination of the widget's before query event to add additional dimension data for the hover tooltips and the before datapoint tooltip event to incorporate these dimensions into the tooltip. This method of modifying the query using the "beforequery" event can also be applied to all other widget types // Add extra parameters to be used in tooltips by modifying query widget.on('beforequery', function (se, ev) { // Initial number of widget metadata panels excluding filter panel widget.initialPanelSizeExcludingFilterPanel = ev.query.metadata.filter((panel) => { return panel.panel !== "scope" }).length; // Extra dimensions to show in tooltip, should return a single result, include as many as needed, just add to array // Jaql Objects can be copied from other widgets from the prism.activeWidget.metadata.panels via the browser console // Modify JAQL as needed, title of JAQL is used in tooltip and can be modified to any string widget.extraDimensionJAQL = [ { "jaql": { "table": "Category", "column": "Category ID", "dim": "[Category.Category ID]", "datatype": "numeric", "merged": true, "agg": "count", "title": "Unique Category ID" } }, { "jaql": { "table": "Country", "column": "Country ID", "dim": "[Country.Country ID]", "datatype": "numeric", "merged": true, "agg": "count", "title": "Unique Country ID" } }, ] // Add to default widget query the extra dimensions to be used in tooltips ev.query.metadata = ev.query.metadata.concat(widget.extraDimensionJAQL) }); // Add extra dimensions added with beforequery object to ScatterMap tooltip widget.on("beforedatapointtooltip", (event, params) => { // Convert query results to include only the additional dimensions, and formatted for tooltip template var onlyAdditionalDimensions = widget.queryResult.$$rows.map((withoutDefaultDimensionOnlyAdditional) => { // Remove the default dimensions, first part of row result array var withoutDefaultDimensionOnlyAdditional = withoutDefaultDimensionOnlyAdditional.slice(widget.initialPanelSizeExcludingFilterPanel) // Format for tooltip template, include title from JAQL var extraDimensionObj = withoutDefaultDimensionOnlyAdditional.map((extraDimensionValue, index) => { // Use extraDimensionJAQL for label in tooltip return { "text": extraDimensionValue.text, "title": widget.extraDimensionJAQL[index].jaql.title } }) return extraDimensionObj }); // Object to store extra dimensions params.context.marker.extraDimension = {}; // Use matching queryIndex for tooltip of additional dimensions params.context.marker.extraDimension.arr = onlyAdditionalDimensions[params.context.marker.queryIndex]; // Template for tooltip, modify as needed params.template = ` <div class='geo-text'>{{ model.marker.name }}</div> <div class='measure-holder' data-ng-if='model.measuresMetadata.sizeTitle'> <div class='measure-title slf-text-secondary'>{{ model.measuresMetadata.sizeTitle }}:</div> <div class='measure-value'>{{ model.marker.sizeObj.text }}</div> </div> <div class='measure-holder' data-ng-if='model.measuresMetadata.colorTitle'> <div class='measure-title slf-text-secondary'>{{ model.measuresMetadata.colorTitle }}:</div> <div class='measure-value'>{{ model.marker.colorObj.text }}</div> </div> <div class='measure-holder details-measure-holder' data-ng-if='model.measuresMetadata.detailsTitle'> <div class='measure-title slf-text-secondary'>{{ model.measuresMetadata.detailsTitle }}:</div> <div class='measure-value' data-ng-if="!model.marker.detailsObj.arr">{{ model.marker.detailsObj.text }}</div> <div class="details-wait" data-ng-if="model.marker.detailsObj.pendingDetails"></div> <div data-ng-if="model.marker.detailsObj.arr"> <div class="details-value" data-ng-repeat="a in model.marker.detailsObj.arr">{{a.text}}</div> <div class="details-counter" data-ng-if="model.marker.detailsObj.hasMore"> <div class="details-counter">...</div> <div class="details-counter"> {{'smap.ttip.firstres'|translate:(args={count:model.marker.detailsObj.arr.length})}}</div> </div> </div> </div> <div data-ng-if="model.marker.extraDimension.arr"> <div data-ng-if='model.measuresMetadata.colorTitle'> <div class='measure-holder' data-ng-repeat="a in model.marker.extraDimension.arr"> <div class='measure-title slf-text-secondary'>{{a.title}}:</div> <div class="measure-value extra-dimension-value">{{a.text}}</div> </div> </div> </div>`; }); The JAQL can be changed to any valid JAQL object, and the tooltip template can also be further modified.Update and add new Highcharts modules for use in Sisense plugins
Update and add new Highcharts modules for use in Sisense plugins The JavaScript library framework Highcharts is natively included in Sisense and is utilized in many native Sisense widgets as well as in numerous Sisense plugins. Although Sisense typically does not alter the Sisense Highcharts library version with every release, the versions of Highcharts included in Sisense may change when upgrading to a new major version release. Highcharts can load additional chart types and other types of functionality via JS module files that contain code-adding features such as additional chart types, which can be used within plugins along with additional code to create additional widget types. If a plugin utilizes a Highcharts module, you can source the module directly in the "plugin.json" file's source parameter, as shown in this example: "source": [ "HighchartModule.js", ], To determine the current Highcharts version being used in your Sisense version, you can use the "Highcharts" command in the web console while viewing any page on your Sisense server. After identifying the current Highcharts version, you can find the corresponding module hosted on the Highcharts code hosting website using the following URL format: https://code.highcharts.com/${Highcharts_Version}/modules/${module_name}.js For example: https://code.highcharts.com/6.0.4/modules/heatmap.js You can save this module and upload it to the plugin folder or replace the older module JS file simply by copying and pasting the code directly. Be sure to update the "plugin.json" file to point to the new module file if the file name has changed or if this is the first time the module is included. Simply sourcing the module file in the "plugin.json" file is sufficient to load the module into Highcharts; no further code is required to load the module.Advanced Scripting for Sisense’s Simply Ask NLQ: Adding Currency Symbols to Pivot Tables
Sisense’s Simply Ask feature empowers users to create visualizations instantly by asking natural language questions, simplifying data exploration without needing technical expertise or manual widget configuration. This Natural Language Query (NLQ) capability accelerates insights generation without the need to manually create new Sisense widgets through the standard UI for each question or data relationship of interest. In a previously published article , it was discussed how to customize Simply Ask NLQ-generated widgets using scripting, providing multiple examples of basic modifications and more detail on the basic mechanics of scripting Simply Ask widgets. In this article a more complex example wil be shared to show how widgets can be customized in more complex conditional ways: programmatically adding currency symbols to specific data columns in pivot table widgets generated by Simply Ask.Modifying Simply Ask Natural Language Query Generated Widgets with Scripting
Sisense's Simply Ask feature empowers users to create visualizations instantly by asking natural language questions, simplifying data exploration without needing technical expertise or manual widget configuration. This Natural Language Query (NLQ) capability accelerates data exploration and insights generation without needing to manually create new Sisense widgets through the standard UI for each question or data relationship of interest. However, these automatically generated widgets differ from standard widgets in that they do not trigger typical widget scripting events, which poses a challenge for applying custom modifications. This limitation can hinder the application of standard dashboard and widget scripting customizations directly to these widgets. Fortunately, it is possible to modify NLQ-generated widgets programmatically by using JavaScript to manipulate the HTML of the fully rendered widgets without relying on Sisense-specific widget scripting events. This approach involves observing changes in the Simply Ask modal DOM and applying custom code when new widgets are rendered. This article explores how to implement such customizations, providing code examples and notes to help customize NLQ-generated Simply Ask widgets.Plugin - customLogoLink
Plugin - Set Custom Link Overriding default In Top Left Logo Icon Description This plugin allows changing the link of the top-left Sisense or white-labeled logo on the server's home page to a custom URL. Disabling the plugin will restore the logo link to its default behavior. Installation To install this plugin, download and unzip the attachment. Then drop the disableLogoLink folder into your plugins folder (/opt/sisense/storage/plugins). Enable the plugin on the Add-ons tab in the Admin section, wait for the plugin to build, and the plugin will be enabled. The plugin API and file management UI can also be used. Config Options - URL - URL navigated to on logo click - iframeLogoLinkChangeParentAddress - Boolean option allows logo click to change the parent address of a Sisense Iframe. It should be noted that JTD uses an iframe Notes This plugin is similar to the DisableLogoLink plugin which is documented here this page includes notes on creating plugins similar to this one. Learn more: https://docs.sisense.com/main/SisenseLinux/pre-post-build-plugins.htm https://academy.sisense.com/master-class-advanced-dashboards-with-plug-ins-and-scriptsConditional Coloring with Scripting in Sisense Polar Bar Charts

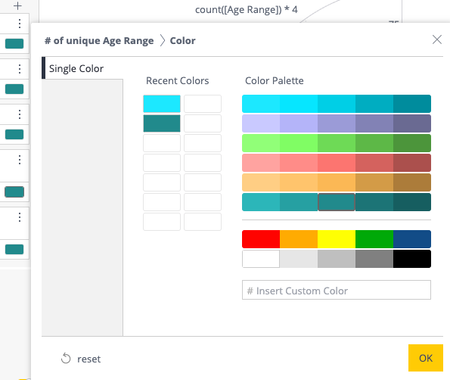

Enhance Sisense polar charts with custom conditional coloring using a script. Apply dynamic colors to bars based on value thresholds (e.g., red for high, yellow for medium, green for low) to improve data visualization and interpretation.Using the InternalHttp Function Within Scripts and Plugins
The InternalHttp function is a Sisense function within the Sisense internal Prism object. The prism object and the InternalHttp function is present on all Sisense pages, and can be used in scripts and plugins, including when embedded with various forms of Sisense embedding. It facilitates custom additional API requests to the Sisense server by applying the same request headers used for internal Sisense requests to handle details of API requests such as authentication, CORS, and CSRF.Advanced Pivot Widget Scripting - Combining Custom JAQL and the Pivot 2.0 API
While the Pivot Table Widget Type is a highly customizable and flexible Sisense widget for representing data in tabular form, certain use cases may be best achieved through custom code and scripting. The Pivot 2.0 JavaScript API facilitates the modification of existing pivot table cells, including updating cell values and adding data to cells not present in the initial results.Demonstrating ComposeSDK Styling Of Sisense Dashboard Widgets
Demonstrating ComposeSDK Styling Of Existing Sisense Dashboard Widgets When developing ComposeSDK embedded applications, there are three principal techniques for embedding or converting an existing Sisense widget. Discussing each method, and some of the benefits associated with them: Direct Rendering existing Sisense Dashboard Widgets with the DashboardWidget Function: The expedited approach involves rendering an existing Sisense widget directly using the DashboardWidget function. While this method ensures swift integration, it does not allow all data options of the widget to be edited within ComposeSDK or defined as variables, one of the features of native ComposeSDK widgets. Nevertheless, customization of other parameters, including styling, remains feasible based on the props used. Mandatory parameters include the dashboard and widget ID, which allow the rendering of an existing Sisense widget. Widget Recreation using ComposeSDK to Create Native ComposeSDK widgets An alternative method, detailed in this article, entails recreating the widget as a native ComposeSDK widget by employing an existing Sisense widget as a template for a new not directly linked ComposeSDK widget. Though potentially more time-intensive, this approach yields a fully customizable native ComposeSDK widget. It stands independent of any specific widget or dashboard on the Sisense server, enabling complete independence to changes made to the original dashboard or widget, or complete deletion of the widget used as the model. Loading Widget Metadata with the useGetWidgetModel function Leveraging the useGetWidgetModel ComposeSDK function provides a middle option, detailed in this article. It allows automating the return of widget metadata from an existing Sisense widget, facilitating dynamic modifications within ComposeSDK. This method balances somewhat the autonomy of entirely recreating a widget as a native ComposeSDK widget and rendering a widget as a Dashboard Widget. In this article, we will demonstrate and discuss the DashboardWidget rendering feature, a powerful capability within ComposeSDK that allows the embedding and rendering of existing widgets. The focus will be on exploring the large number of styling options provided by this feature. Among the properties of a DashboardWidget component, the styleOptions parameter determines the styling. This parameter accepts a DashboardWidgetStyleOptions object, which includes a large number of parameters documented in detail below and in this documentation page. To demonstrate a practical implementation of using these styling options, the following code example showcases a Compose DashboardWidget utilizing all documented parameters within the DashboardWidgetStyleOptions object. import { DashboardWidget } from "@sisense/sdk-ui"; export function ComposeSDKChart(props) { let styleOptions = { "backgroundColor": "lightblue", "border": true, "borderColor": "green", "cornerRadius": "Large", "shadow": "Dark", "spaceAround": "Large", "header": { "hidden": false, "titleAlignment": "Center", "backgroundColor": "lightblue", "titleTextColor": "blue" }, "height": 200, "width": 200 }; return (<DashboardWidget widgetOid={'65ab8958857ff900335db870'} dashboardOid={'65ab8948857ff900335db86e'} styleOptions={styleOptions} title={"My Chart"} />) } The final result in this example is the widget below, showing the effect of this styling in this specific case: Discussing each style option individually, including the type of parameter accepted by each style setting. backgroundColor: Type: string - Specifically a string containing an HTML color Description: This option sets the background color of the widget. In the example, the background color is set to "lightblue," a preset standard HTML color code that is equal to #ADD8E6 as a hex color code. border: Type: boolean Description: This option determines whether the widget container has a border or not. In the example, the border is enabled with the value set to true, adding a defined boundary to the widget that can be styled. borderColor: Type: string - Specifically a string containing an HTML color, Description: Specifies the color of the widget container's border. cornerRadius: Type: "Large" | "Medium" | "Small" - Three specific options set as specific strings Description: Defines the corner radius of the widget container, similar to the CSS property of the same name, allowing for customization of the widget container's shape. header: Type: object- Contains various parameters that control the styling of the header and title. Description: A style object to customize the widget header. It includes options like background color, divider line toggle, divider line color, header visibility toggle, title alignment, and title text color. header.backgroundColor: Type: string - Specifically a string containing an HTML color Description: Sets the background color of the widget header. header.dividerLine: Type: boolean Description: Controls the visibility of the divider line between the widget header and the chart. header.dividerLineColor Type: string - Specifically a string containing an HTML color Description: Specifies the color of the divider line, if visible. header.hidden Type: boolean Description: Toggles the visibility of the header and title. header.titleAlignment Type: "Left" | "Center" - Two specific options set as specific strings Description: Alignment of the title within the header. The example centers the title using the value "Center. header.titleTextColor Type: string- Specifically a string containing an HTML color Description: Specifies the text color of the header title. height: Type: number - Number in pixels Description: Sets the total height of the widget in pixels. If not explicitly set will use the height of the container. width: Type: number - Number in pixels Description: Sets the total width of the widget in pixels. If not explicitly set will use the width of the container. shadow: Type: "Medium" | "Light" | "Dark" - Three specific options set as specific strings Description: Defines the shadow level of the widget container, similar to the CSS style of the same name. Effects styling only when spaceAround is defined. spaceAround: Type: "Large" | "Medium" | "Small" - Three specific options set as specific strings Description: Specifies the space between the widget container edge and the chart. With these styling options, one can modify the visual styling of a ComposeSDK DashboardWidget, enabling a large amount of style customization for an otherwise unchanged existing dashboard widget selected from an existing dashboard on the Sisense server. While ComposeSDK DashboardWidgets may not offer the extensive modification capabilities available to native ComposeSDK widgets, such as the ability to completely modify all of widget data options, they still provide a large degree of extensive visual customization through the use of styling options. Share your experience in the comments!
