How to Automatically Hide Accordion Widgets When Clicking on Tabber (Linux)

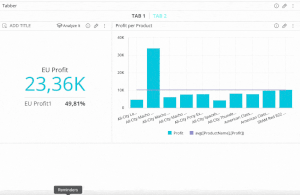

How to Automatically Hide Accordion Widgets When Clicking Outside the Accordion Window (Linux) Introduction This article addresses the specific scenario where accordion widgets remain visible even after interacting with other interface elements, such as tabber widgets, in a dashboard environment. Step-by-Step Guide Integrate a widget Script in the widget edit mode > click the 3 dots menu > Edit Script: widget.on("ready", function(w, e) { var tabs = document.querySelectorAll(".listDefaultCSS > span.listItemDefaultCSS, .listItemContainer > span.listItemDefaultCSS, .listItemContainer.selected > span.listItemDefaultCSS"); tabs.forEach(function(tab) { tab.addEventListener("click", function(e) { var accordions = document.querySelectorAll(".bk-accordion"); var arrows = document.querySelectorAll(".bk-arrow"); accordions.forEach(function(accrd) { if (accrd.style.opacity == "1") { accrd.style.opacity = "0"; accrd.style.padding = "0"; accrd.style.height = "0"; } }); arrows.forEach(function(arr) { if (arr.style.opacity == "1") { arr.style.opacity = "0"; } }); }); }); }); This script will detect clicks on the tabber widgets and hide any visible accordion windows by setting their opacity, padding, and height to zero. After adding the script, navigate through your dashboard to ensure that accordion widgets hide as expected when clicking on a tabber widget or other areas. [ALT Text: A data visualization dashboard displaying a bar graph titled "Profit per Product." The graph shows profit values for different products with values reaching up to 10,000. The total EU profit is indicated as 23,36K, with a profit rate of 49.81%. Tabs for additional analysis are visible at the top.] Conclusion By incorporating the provided dashboard script, users can enhance their user interface experience by ensuring accordion widgets automatically hide when interacting with other dashboard elements. Despite the current design limitations regarding the accordion's position, the script offers a viable solution to improve dashboard interactions. Disclaimer: This post outlines a potential custom workaround for a specific use case or provides instructions regarding a specific task. The solution may not work in all scenarios or Sisense versions, so we strongly recommend testing it in your environment before deployment. If you need further assistance with this please let us know.Creating dynamic hyperlinks on Pivot2 tables without updating the data model
Creating dynamic hyperlinks on Pivot2 tables without updating the data model These two articles provide options to create hyperlinks (clickable texts) on pivot tables: Clickable URL Links In Pivot Rows Pivot2: "Clickable URL Links In Pivot Rows" Re-Implemented (plugin) Both of these options require creating a custom column in the data model to create the HTML element (e.g. '<a href="' + [Link] + '" target="_blank">' + [Column_Name] + '</a>'), which will then be rendered as hyperlinks on the dashboard. The main drawback with this approach is that when you export the pivot table into a CSV or Excel file, these lines of code will show up as the values, instead of the hyperlinked texts (see screenshots below). Despite being rendered as HTML content on the dashboard, CSV/Excel exports will always display the underlying data, which, in this case, includes the full HTML element. Data on the widget: Data on Excel export: The only way to avoid this issue is to generate the HTML elements on the fly (at query time) rather than storing them in the Elasticube/live model. This can be achieved using one of the widget scripts below. 1. If the text to display is the same as the text that needs to be appended to the URL (e.g. hyperlink is added to the SalesOrderID column, and the value passed to the URL is also from SalesOrderID), use the below script. Be sure to specify the colIndexToTransform and URLToAppend values. /***** Add Hyperlinks to Cell Values*****/ //Specify the index of the column to add hyperlinks to, index starts at 0 var colIndexToTransform = 0; //Specify the URL to append to the cell content which will make up the full web address var URLToAppend = 'https://www.google.com/search?q='; widget.transformPivot({ }, handler); function handler(metadata, cell) { //If you have more than one level of header, modify the condition (metadata.rowIndex > 0) below to however many level of header you have minus one //e.g. if you have three levels of header, change the condition to metadata.rowIndex > 2. This is to make sure hyperlinks are not created for header values if(metadata.colIndex == colIndexToTransform && metadata.rowIndex > 0 && !metadata.type.includes('grandtotal') && !metadata.type.includes('subtotal')) { cell.contentType = 'html'; cell.content = `<a href="${URLToAppend}${cell.content}" target="_blank" rel="noopener noreferrer">${cell.content}</a>`; } } /***** End of Script *****/ In this example, URLs are added to the SalesOrderID column. Each URL has the SalesOrder value appended to it (e.g. https://www.google.com/search?q=43701). Since the underlying data do not contain HTML elements, only the actual values are displayed when the table is exported to CSV/Excel. 2. If the text to display is NOT the same as the text that needs to be appended to the URL (e.g. hyperlink is added to the CategoryName column, but the value passed to the URL is from CategoryID), use the below script. Be sure to specify the colIndexToTransform, colIndexForURL, and URLToAppend values. /***** Add Hyperlinks to Cell Values*****/ //Specify the index of the column to add hyperlinks to, index starts at 0 var colIndexToTransform = 1; //Specify the index of the column whose value will be appended to the URL, index starts at 0 var colIndexForURL = 0; //Specify the URL to append to the cell content which will make up the full web address var URLToAppend = 'https://www.google.com/search?q='; widget.transformPivot({ }, handler); var dashboard_id = []; var dashboard_id_index = 0; function handler(metadata, cell) { if(metadata.colIndex == colIndexForURL && metadata.rowIndex > 0 && !metadata.type.includes('grandtotal') && !metadata.type.includes('subtotal')) { dashboard_id[dashboard_id_index] = cell.content; dashboard_id_index = dashboard_id_index + 1; } //If you have more than one level of header, modify the condition (metadata.rowIndex > 0) below to however many level of header you have minus one //e.g. if you have three levels of header, change the condition to metadata.rowIndex > 2. This is to make sure hyperlinks are not created for header values if(metadata.colIndex == colIndexToTransform && metadata.rowIndex > 0 && !metadata.type.includes('grandtotal') && !metadata.type.includes('subtotal')) { cell.contentType = 'html'; cell.content = `<a href="${URLToAppend}${dashboard_id[dashboard_id_index-1]}" target="_blank" rel="noopener noreferrer">${cell.content}</a>`; } } /***** End of Script *****/ In this example, URLs are added to the CategoryName column. However, each URL has the CategoryID value appended to it (e.g. https://www.google.com/search?q=3), not the category name. For more information about customizing Sisense dashboards and widgets using JavaScript, please refer to these articles: Customizing Sisense using JavaScript Extend The Functionality Of An Existing Widget Pivot 2.0 API Pivot 2.0 - Guide to Manipulating Pivot Tables
