Using BloX to enable or disable Pivot rows in Sisense dashboards (Linux)
Using BloX to enable or disable pivot rows in Sisense dashboards (Linux) Step-by-Step Guide To enable or disable a row in a Pivot widget using BloX, follow these steps: 1. Create a Custom Action in BloX: Open the BloX widget in edit mode. Click on the three-dot icon. Select "Create Action" and name it manageRows. 2. Insert Action Code: Copy and paste the following code snippet into the action creation area: let widgets = payload.widget.dashboard.widgets.$$widgets; let pivotWidgets = widgets.filter(widget => widget.type === 'pivot2'); pivotWidgets.forEach(widget => { let panel = widget.metadata.panels.find(p => p.name === 'rows'); if (!panel) return; // Replace [Commerce.Condition] with the dimension of the row to be managed. let item = panel.items.find(i => i.jaql ?.dim === '[Commerce.Condition]'); if (!item) return; item.disabled = !item.disabled; widget.changesMade('pivotchanged', ['metadata']); widget.refresh(); }); 3. Configure the Action Parameters: Add the following action parameters in the second step: { "type": "manageRows", "title": "title" } 4. Apply the Action: Click "Create" and then "Apply" to save your custom action. 5. Import the Dashboard: Import the provided dashboard, which is based on the sample cube "Sample ECommerce" and contains a BloX widget with the script that utilizes the created action, and also two Pivot widgets for testing purposes. 6. Test the Button: Use the "ChangePivot" button within the dashboard to toggle the visibility of the "Condition" row. Conclusion: By following this guide, you can create interactive dashboards that allow users to enable or disable pivot rows with a simple button click. This functionality enhances the user experience by providing dynamic interaction with the data. References/Related Content Sisense BloX Custom Actions Guide Creating Custom Actions in Sisense Disclaimer: This post outlines a potential custom workaround for a specific use case or provides instructions regarding a specific task. The solution may not work in all scenarios or Sisense versions, so we strongly recommend testing it in your environment before deployment. If you need further assistance with this, please let us know.Blox - Multi-Select Dropdown List Filter
Blox - Multi-Select Dropdown List Filter This article will take you step by step on how to create a multi-select dropdown filter using Blox and JavaScript. ElastiCube: 1. For each field you want to use in multi-select filter, you need to add a custom column. For instance, in our Sample ECommerce ElastiCube, add a custom column to the "Category" table: For Sisense on Windows add the below string in order to create the column: '<li><input type="checkbox" />'+[Category].[Category]+'</li>' For Sisense on Linux: '<li><input type=checkbox>'+[Category].[Category] + '</li>' 2. Change its name to [CategoryHTML]. 3. Do the same for the column [Country] from the table [Country] and name it [CountryHTML]. 3. Perform the 'Changes Only' build. Dashboard: 1. Download the dashboard attached and import it to your application. 2. Create a custom action in BloX and name it MultiBoxSelection: 3. Add the action's code below: var outputFilters = []; var widgetid = payload.widget.oid; var widgetElement = $('[widgetid="' + widgetid + '"]'); widgetElement.find($('blox input:checked')).parent().each(function () { var values = $('.fillmeup').attr('value') + $(this).text(); $('.fillmeup').attr('value', values); }).each((i, lmnt) => { outputFilters.push($(lmnt).text()); }) payload.widget.dashboard.filters.update( { 'jaql': { 'dim': payload.data.dim, 'title': payload.data.title, 'filter': { 'members': outputFilters }, 'datatype': 'text' } }, { 'save': true, 'refresh': true } ) 4. Action's snippet: { "type": "MultiBoxSelection", "title": "Apply", "data": { "dim": "FilterDimension", "title": "FilterTitle" } } 5. Add the widget's script. For each widget you need to change identifiers [CategoryList] and [CategoryItems] - these identifiers should be unique per each widget on a page: widget.on('ready', function() { var checkList = document.getElementById('CategoryList'); var items = document.getElementById('CategoryItems'); checkList.getElementsByClassName('anchor')[0].onclick = function(evt) { if (items.classList.contains('visible')) { items.classList.remove('visible'); items.style.display = "none"; } else { items.classList.add('visible'); items.style.display = "block"; } } items.onblur = function(evt) { items.classList.remove('visible'); } }); widget.on('processresult', function(a, b) { b.result.slice(1, b.result.length).forEach(function(i) { b.result[0][0].Text = b.result[0][0].Text + ' ' + i[0].Text }) }); These identifiers should be the same as you have in the widget in the value of [text]: { "type": "TextBlock", "spacing": "large", "id": "", "class": "", "text": "<div id='CategoryList' class='dropdown-check-list' tabindex='100'> <span class='anchor'>Select Category</span> <ul id='CategoryItems' class='items'>{panel:CategoryHTML}</ul> </div>" } 5. Click Apply on the widget and refresh the dashboard. Important Notes: Make sure you have the Category in the items (The new column was created) and name the Item "Category". Make sure you have a Category Filter (The actual category field and name it "Category") on the dashboard level. Make sure to replace the field and table names with the relevant field/table in the Action, in the editor of the Blox widget in the Blox items and in the dashboard filter. Disclaimer: Please note that this blog post contains one possible custom workaround solution for users with similar use cases. We cannot guarantee that the custom code solution described in this post will work in every scenario or with every Sisense software version. As such, we strongly advise users to test solutions in their environment prior to deploying them to ensure that the solutions proffered function as desired in their environment. For the avoidance of doubt, the content of this blog post is provided to you "as-is" and without warranty of any kind, express, implied, or otherwise, including without limitation any warranty of security and or fitness for a particular purpose. The workaround solution described in this post incorporates custom coding, which is outside the Sisense product development environment and is, therefore, not covered by Sisense warranty and support services.
Changing Measures In The Entire Dashboard Using Blox User Interface
Objective Display several related values (KPIs/Measures) in multiple widgets in the dashboard based on the user selection, in a simple and easy way, without duplicating widgets/formulas or tables in the Elasticube. As a direct result - the queries behind the widgets are extremely faster - lead to shorter loading time when the end-user needs to change the whole dashboard KPIs. Example files (works with Ecommerce Sample Elasticube): Dashboard Blox Template Blox Action Demonstration: Preparation Create a new Indicator widget and save its WidgetId. Create a custom action with this code below and name it SwitchMeasure var dimIndex = payload.data.selectVal - 1; var dimToSwapTo = payload.widget.metadata.panels[1].items[dimIndex].jaql; var widgetIds = payload.data.widgetToModify; payload.widget.dashboard.widgets.$$widgets .filter(i=>widgetIds.includes(i.oid)) .forEach(function(widget){ if(widget.metadata.panels[1].$$widget.type == 'indicator') { widget.metadata.panels[0].items[0].jaql = dimToSwapTo; } else { widget.metadata.panels[1].items[0].jaql = dimToSwapTo; } widget.changesMade(); widget.refresh(); }) Implementation 1. ADDING MEASURES TO SWITCH BETWEEN The formulas in the values panel define the measures your other widgets will switch between. Create a new Blox widget and add all the formulas (Up to 20 Formulas) you want to switch between into the values panel in the selection of the button Blox widget. Please pay attention to the order (top value to bottom -> left to right buttons) 2. CUSTOMIZING THE BUTTONS SELECTION WIDGET This step will define the values that are visible to the user in the button selection widget. -Add choices that reflect the ORDER and intuitive name the formulas in the values panel. -Add the widget IDs of the widgets you'd like to modify to the script of each option. You can find the widget ids in the URL when in widget editing mode. -Change the button color by editing the Background color for each option. For example, we will be switching between Revenue, Cost, and Quantity, our Blox script would be: { "style": "", "script": "", "title": "", "showCarousel": true, "titleStyle": [ { "display": "none" } ], "carouselAnimation": { "delay": 0, "showButtons": false }, "body": [ { "type": "TextBlock", "id": "", "class": "", "text": " " } ], "actions": [ { "type": "SwitchMeasure", "title": "Revenue", "style": { "backgroundColor": "#298C1A" }, "data": { "widgetToModify": [ "5f1b462e336d9c242cb9e8ea", "5f1b462e336d9c242cb9e8e5", "5f1b462e336d9c242cb9e8e7", "5f1b462e336d9c242cb9e8e9", "5f1b462e336d9c242cb9e8e8" ], "selectVal": "1" } }, { "type": "SwitchMeasure", "title": "Cost", "style": { "backgroundColor": "#A31818" }, "data": { "widgetToModify": [ "5f1b462e336d9c242cb9e8ea", "5f1b462e336d9c242cb9e8e5", "5f1b462e336d9c242cb9e8e7", "5f1b462e336d9c242cb9e8e9", "5f1b462e336d9c242cb9e8e8" ], "selectVal": "2" } }, { "type": "SwitchMeasure", "title": "Quantity", "style": { "backgroundColor": "#708AA5" }, "data": { "widgetToModify": [ "5f1b462e336d9c242cb9e8ea", "5f1b462e336d9c242cb9e8e5", "5f1b462e336d9c242cb9e8e7", "5f1b462e336d9c242cb9e8e9", "5f1b462e336d9c242cb9e8e8" ], "selectVal": "3" } } ] } 3. CUSTOMIZING THE BUTTON SELECTION ANIMATION Add the script (widget script) below to the indicator you created in the preparation section: Change the WidgetID to your indicator Widget ID Change the formula names based on the value list from the buttons selection widget Change the button’s titles based on the titles you selected the buttons selection widget //Widget Script: var ChooseYourUnselectColor = '#D3D3D3'; var Button1Color = '#298C1A'; var Button2Color = '#A31818'; var Button3Color = '#708AA5'; var widgetIndicator = '5f1b462e336d9c242cb9e8ea' widget.on('ready',function(widget, args){ var widgetOID = widgetIndicator; //Get the selected KPI object var widget = prism.activeDashboard.widgets.$$widgets.find(w => w.oid === widgetOID) if(widget.metadata.panels[0].items[0].jaql.title == 'Total Revenue'){ var textOfButtonToFormat1 = 'Cost'; var textOfButtonToFormat2 = 'Quantity'; var selectedButton = 'Revenue' $('button.btn:contains('+textOfButtonToFormat1+')').css({ transition : 'background-color 50ms ease-in-out', "background-color": ChooseYourUnselectColor }); $('button.btn:contains('+textOfButtonToFormat2+')').css({ transition : 'background-color 50ms ease-in-out', "background-color": ChooseYourUnselectColor }); $('button.btn:contains('+selectedButton+')').css({ transition : 'background-color 50ms ease-in-out', "background-color": Button1Color }); } else if (widget.metadata.panels[0].items[0].jaql.title == 'Total Cost') { var textOfButtonToFormat1 = 'Revenue'; var textOfButtonToFormat2 = 'Quantity'; var selectedButton = 'Cost' $('button.btn:contains('+textOfButtonToFormat1+')').css({ transition : 'background-color 50ms ease-in-out', "background-color": ChooseYourUnselectColor }); $('button.btn:contains('+textOfButtonToFormat2+')').css({ transition : 'background-color 50ms ease-in-out', "background-color": ChooseYourUnselectColor }); $('button.btn:contains('+selectedButton+')').css({ transition : 'background-color 50ms ease-in-out', "background-color": Button2Color }); } else { var textOfButtonToFormat1 = 'Revenue'; var textOfButtonToFormat2 = 'Cost'; var selectedButton = 'Quantity' $('button.btn:contains('+textOfButtonToFormat1+')').css({ transition : 'background-color 50ms ease-in-out', "background-color": ChooseYourUnselectColor }); $('button.btn:contains('+textOfButtonToFormat2+')').css({ transition : 'background-color 50ms ease-in-out', "background-color": ChooseYourUnselectColor }); $('button.btn:contains('+selectedButton+')').css({ transition : 'background-color 50ms ease-in-out', "background-color": Button3Color }); } })Multiple Date Range Selectors using BloX for KPI Benchmark

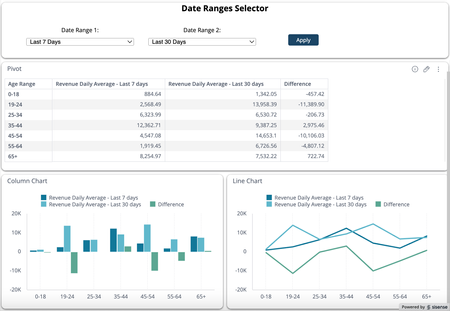

In certain scenarios, users may need to compare the same metric across two different time periods. Here are some example use cases: Sales velocity: Comparing average daily sales for the last 30 days vs. the last 90 days to identify if recent promotions are boosting sales. Customer acquisition: Comparing the number of new customers acquired in the last 90 days vs. the last 180 days to measure growth acceleration. Website or app traffic: Comparing page views or active users over the last 7 days vs. the last 30 days to see the impact of recent campaigns or updates. Inventory turnover: Comparing inventory sold in the last 30 days vs. the last 60 days to determine if demand is increasing or if there's overstock. These time periods need to be dynamic and selectable, which means hard coding them as measured values (filter on formula) in the widgets will not work. One possible solution for this requirement is to duplicate the date field in the data model, and create two date filters (one for each time period) on the dashboard. The main drawback of this approach is that you will need two different widgets, one for each time period. Otherwise, the two filters will conflict/combine. The first date filter needs to be disabled in the second widget, and similarly, the second date filter needs to be disabled in the first widget. A better solution is to use BloX to provide two date range selectors and apply the selections to the formula's measured value dynamically. This way, you can use a single widget to compare the metric across two different time periods. Here is an example: ALT text: A data visualization interface titled "Date Ranges Selector." It includes a date range selection option, with fields for "Date Range 1" and "Date Range 2," labeled 'Last 7 Days' and 'Last 30 Days.' Below, there is a pivot table displaying age ranges (0-18, 19-24, 25-34, 35-44, 45-54, 55-64, 65+) along with three columns: "Revenue Daily Average - Last 7 days," "Revenue Daily Average - Last 30 days," and "Difference." Two charts, a column chart on the left and a line chart on the right, represent the revenue averages for the specified age groups over the two date ranges. A working dashboard example, along with the cube can be found in the links below. Please note that once imported, the cube still needs to be built. Dashboard: BloX - Multiple Date Range Selectors for KPI Comparison Elasticube: Sample ECommerce - Current Dates Implementation This BloX custom action allows users to select two date ranges and compare the KPI in those two periods, e.g. average daily revenue in the last 30 days vs. the last 90 days. The KPI doesn't necessarily have to be the same. For example, you can compare Revenue in the last 30 days vs Cost in the last 60 days. This custom action supports Pivot and Cartesian charts (column, bar, line, area). Instructions: Create the BloX widget. Download and use the attached template (KPI_Benchmarker-2024-12-31.json). Make changes as needed. The attached template includes 9 date range choices in the dropdown menu: 7 days, 15 days, 30 days, 60 days, 90 days, 120 days, 180 days, 360 days, 365 days. Add/remove the choices and make other changes as needed. Add the custom BloX action. Add the custom action at the end of this article to your environment: copy the entire code, create a new BloX custom action in your environment, and paste the code into the new action. Name the action DateRangesSelectorForKPIComparison. If you choose to use a different name, you have to update the BloX code to reflect this change. Create the widget(s) where you want compare the KPI. Add the first formula to the Values panel with a measured value on a date field set to the last any arbitrary number of days, e.g. (SUM(Revenue), Days in Date), where Days in Date is set to Last 30 days. Rename the KPI title to any text, but include "Last xx days" in the title, e.g. "Revenue - Last 30 days". The BloX action will automatically update the number in the title to reflect user selection. Add the second formula to the Values panel following the same instruction as step #3a, e.g. (SUM(Revenue), Days in Date), where Days in Date is set to Last 60 days. Rename the second KPI following the same instruction as step #3b, e.g. "Revenue - Last 60 days". Add any arbitrary formula (it can also be a hard-coded value like 0) to the Values panel as a placeholder for the third formula, i.e. the delta calculation. The BloX action will automatically replace the formula with the delta calculation. Create the next widget(s) as needed. Add all widget IDs that you want to apply this custom action on in the BloX code under the widgetToModify parameter, then click Apply to save the widget. Test the BloX widget by selecting the first and second date ranges from the dropdown boxes, then hit Apply. DateRangesSelectorForKPIComparison custom action: //initialize variables var widgetIds = payload.data.widgetToModify; var filterValue1 = payload.data.selectVal1; var filterValue2 = payload.data.selectVal2; //loop through each of the specified widgets payload.widget.dashboard.widgets.$$widgets .filter(i => widgetIds.includes(i.oid)) .forEach(function (widget) { var newMeasure1Title = widget.metadata.panels[1].items[0].jaql.title.replace(/Last .*? days/, "Last " + filterValue1 + " days"); var newMeasure2Title = widget.metadata.panels[1].items[1].jaql.title.replace(/Last .*? days/, "Last " + filterValue2 + " days"); /***** Date Period 1 - Set date measured value for the first calculation *****/ //check if the panel item contains context (i.e. a formula) if (widget.metadata.panels[1].items[0].jaql.context != undefined) { //get the JAQL context of the panel item var queryContext = widget.metadata.panels[1].items[0].jaql.context; //loop through each context in the item for (let [k, v] of Object.entries(queryContext)) { //find the context that contains the date measured value if (v.filter != undefined && v.datatype == 'datetime') { //update the date measured value v.filter.last.count = filterValue1; } } } //update the measure's title widget.metadata.panels[1].items[0].jaql.title = newMeasure1Title; //store the updated context and formula from the first calculation var formula1Context = widget.metadata.panels[1].items[0].jaql.context; var formula1Formula = widget.metadata.panels[1].items[0].jaql.formula; /***** Date Period 2 - Set date measured value for the second calculation *****/ //check if the panel item contains context (i.e. a formula) if (widget.metadata.panels[1].items[1].jaql.context != undefined) { //get the JAQL context of the panel item var queryContext = widget.metadata.panels[1].items[1].jaql.context; //loop through each context in the item for (let [k, v] of Object.entries(queryContext)) { //find the context that contains the date measured value if (v.filter != undefined && v.datatype == 'datetime') { //update the date measured value v.filter.last.count = filterValue2; } } } //update the measure's title widget.metadata.panels[1].items[1].jaql.title = newMeasure2Title; //store the updated context and formula from the second calculation var formula2Context = widget.metadata.panels[1].items[1].jaql.context; var formula2Formula = widget.metadata.panels[1].items[1].jaql.formula; /***** Date Periods Difference - Set date measured values to the delta formula (difference between first and second formulas) *****/ //get the JAQL var diffFormula = widget.metadata.panels[1].items[2].jaql; //delete the current context and formula delete diffFormula.context; delete diffFormula.formula; //re-add the contexts and formulas using the previously saved contexts and formulas from the first and second calculations diffFormula.context = Object.assign(formula1Context, formula2Context); diffFormula.formula = formula1Formula + ' - ' + formula2Formula; //apply and save changes to the widget widget.changesMade('plugin-BloX', ['metadata']) //refresh the widget widget.refresh(); })BloX: replicating action “send me the report now”
BloX: replicating action “send me the report now” This article explains how to develop an action to send a dashboard as a report to the end user. This action replicates the action “Send me the report now”. This action is available only to the dashboard’s owner, but we will develop a BloX action, which will be available for other users. To solve this challenge you will need to do the following: Create a widget of the type ‘BloX’ on the dashboard you want to have the ability to send reports to the end-users; Create a custom action with the following code: const { widget } = payload; //Get widget’s object from the payload const internalHttp = prism.$injector.get('base.factories.internalHttp'); //Get internal factory to run API requests internalHttp({ url: '/api/v1/reporting', method: 'POST', contentType: 'application/json', data: JSON.stringify({ assetId: widget.dashboard.oid, assetType: "dashboard", recipients: [ { type: 'user', recipient: prism.user._id } ], preferences: { inline: true } }) }).then(res => console.log(res.data)); This action will have the following snippet: { "type": "sendMeReport", "title": "Send me report" } Use this snippet in the widget you have created: { "style": "", "script": "", "title": "", "showCarousel": true, "body": [], "actions": [ { "type": "sendMeReport", "title": "Send me report" } ] } Now, you have a button on the widget. After clicking this button, Sisense will send a report for the currently authenticated user. Please, note that there will be no indication of the running action. When the action is completed there will be a message in the browser’s console. Feel free to customize the logic of this action to show the end-user that the report is generating. Custom action is a powerful tool, which allows you to create custom interactions. Use this approach to create a new action easily. You can customize the proposed action by adding an indication of the running action or by using custom parameters to change format or size of the generated report (check the description of the endpoint /api/v1/reporting for additional information). Check out related content: Creating customer actions Reporting Send ReportsCustomizing the size of a Blox pop-up using a script on Linux
Customizing the size of a Blox pop-up using a script on Linux Introduction This article provides a step-by-step guide on adjusting the size of a Blox pop-up using a script applicable to all modals in Blox. This customization can enhance the appearance of your dashboard and ensure all elements fit well within the design. Step-by-Step Guide Access the Blox Editor: Open your Sisense dashboard and navigate to the Blox widget where you want to adjust the show card height. Add a Custom Script to the "script" Section of the Blox Editor: Insert the following script to adjust the width and height of the show card: const _bloxModalWidth = '50vw'; // Adjust the width as needed const _bloxModalHeight = '50vh'; // Adjust the height as needed (function addStyleToHead() { const styleId = 'blox-show-card-modal-style'; if (!document.getElementById(styleId)) { const cssContent = '.blox-show-card-modal > div { width: ' + _bloxModalWidth + ' !important; height: ' + _bloxModalHeight + ' !important; }'; const styleElement = document.createElement('style'); styleElement.type = 'text/css'; styleElement.appendChild(document.createTextNode(cssContent)); document.head.appendChild(styleElement); } })(); After implementing the changes, preview the dashboard to ensure the widget view meets your expectations.If you prefer not to use a script, you can adjust the style of the form itself to better fit within the pop-up. Modify the CSS properties directly in the Blox editor to achieve the desired dimensions. Conclusion By following these steps, you can customize the height and width of a show card in Sisense Blox to better fit your dashboard design. Whether you use a script or adjust styles directly, these methods provide flexibility in managing the appearance of your dashboard elements. Disclaimer: This post outlines a potential custom workaround for a specific use case or provides instructions regarding a specific task. The solution may not work in all scenarios or Sisense versions, so we strongly recommend testing it in your environment before deployment. If you need further assistance with this please let us know.
Interactive Time Period Comparison with BloX & Custom Actions
Here is a use case on how to leverage BloX widgets in Sisense to create an interactive dashboard for comparing any KPI between two different time periods. This solution allows users to select two months (or any two time periods) and dynamically calculates the percentage change in the KPI between these selected months.Quickly Add Unique Identifier to Blox Action Buttons Without Modifying Blox Template
A customer recently had the unusual request for a method to select and distinguish, via a CSS selector used within a custom Javascript action, for a specific Blox buttons in a existing Blox widget that contained multiple identical buttons, identical in inner text and all other parameters, without adding any new lines to the Blox template to add unique identifiers.BloX Template: Gradient Title Bar Indicator
The Gradient color in bar/column/line/area chart script contains a styled title bar of 3 KPI with a gradient background. Installation Instructions: 1. Download the attached template 2. Extract the json file into your BloX template directory: C:\Program Files\Sisense\app\blox-service\resources\templates Note: If a template of the same name already exists, make sure to rename the file name 3. Refresh your browser 4. Create a new Blox Widget and open the Templates menu under the design pane. You should now be able to see and choose the new template. If you cannot see the template in the All Templates menu, please restart the Sisense.blox service on your Sisense server. 5. Populate the Items and Values panels with relevant fields and aggregations. Please note that any change in panel item names should be reflected in the card editor.Migrating Blox Custom Actions
When relocating Sisense resources from one server to another, the Sisense Rest API is a possible method for transferring Sisense components and objects like dashboards, users, groups, and datasources. Similarly, Blox Custom Actions can be migrated through Sisense Rest API endpoints.
