Custom sort for Bar and Column Chart

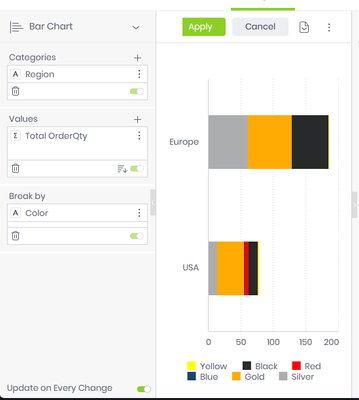

Custom sort for Bar and Column Chart Question: I have seen several posts of people asking if there is a simple way to apply custom sorts for car and column charts, and until recently, I have been using the community customBarColumnChart Plugin, which is not supported anymore, and also not working correctly in the latest version of Sisense cloud. Not sure why this cannot become a standard feature within the system, as there seem to be a lot of requests for this functionality. Answer: The following widget scripts will allow you to sort categories in a bar/column chart. You can change the order of items in sortOrder to change the order. They cater to when you want to sort by a Break By, or when you want to sort by Categories with no Break By. BREAK BY: widget.on('processresult', (w, args) => { var sortOrder = ['Yellow', 'Black', 'Red', 'Blue ', 'Gold', 'Silver'] args.result.series.sort(function (a, b) { return sortOrder.indexOf(a.name) - sortOrder.indexOf(b.name) }) }) The configuration is also attached in a screenshot below: ALT Text: A bar chart displaying total order quantities by region. Two regions are represented: Europe and USA. Each region has bars segmented by color: yellow, blue, black, gold, red, and silver. The chart highlights comparisons in order quantities between the two regions, with specific quantities not indicated in the image. CATEGORIES: If you're aiming to sort by the Categories directly, then you can use the following instead: widget.on('processresult', (w, args) => { var sortOrder = ['USA', 'Europe'] args.result.series[0].data.sort(function (a, b) { return sortOrder.indexOf(a.selectionData[0]) - sortOrder.indexOf(b.selectionData[0]) }) args.result.xAxis.categories.sort(function (a, b) { return sortOrder.indexOf(a) - sortOrder.indexOf(b) }) }) This configuration looks like this: ALT text: Bar chart comparing total order quantity between the USA and Europe. The USA has a higher total order quantity than Europe, with both categories represented in dark blue bars on a white background. This was tested using Sample Retail. Let me know how it goes for you in the comments! Check out this related content: Academy DocumentationAdvanced Scripting for Sisense’s Simply Ask NLQ: Adding Currency Symbols to Pivot Tables
Sisense’s Simply Ask feature empowers users to create visualizations instantly by asking natural language questions, simplifying data exploration without needing technical expertise or manual widget configuration. This Natural Language Query (NLQ) capability accelerates insights generation without the need to manually create new Sisense widgets through the standard UI for each question or data relationship of interest. In a previously published article , it was discussed how to customize Simply Ask NLQ-generated widgets using scripting, providing multiple examples of basic modifications and more detail on the basic mechanics of scripting Simply Ask widgets. In this article a more complex example wil be shared to show how widgets can be customized in more complex conditional ways: programmatically adding currency symbols to specific data columns in pivot table widgets generated by Simply Ask.Customizing the Offset Size of Selected Categories in Sisense Pie Chart Widgets
In Sisense, pie chart widgets, including the various pie chart style options such as donut charts, are a common way to visualize data. By default, when a user selects a category within a pie chart, that slice "pops out" to highlight the selection. This article explains how to customize the offset size of selected categories in Sisense pie chart widgets by leveraging Highcharts settings of the widget using Sisense widget scripting capabilities.Modifying Simply Ask Natural Language Query Generated Widgets with Scripting
Sisense's Simply Ask feature empowers users to create visualizations instantly by asking natural language questions, simplifying data exploration without needing technical expertise or manual widget configuration. This Natural Language Query (NLQ) capability accelerates data exploration and insights generation without needing to manually create new Sisense widgets through the standard UI for each question or data relationship of interest. However, these automatically generated widgets differ from standard widgets in that they do not trigger typical widget scripting events, which poses a challenge for applying custom modifications. This limitation can hinder the application of standard dashboard and widget scripting customizations directly to these widgets. Fortunately, it is possible to modify NLQ-generated widgets programmatically by using JavaScript to manipulate the HTML of the fully rendered widgets without relying on Sisense-specific widget scripting events. This approach involves observing changes in the Simply Ask modal DOM and applying custom code when new widgets are rendered. This article explores how to implement such customizations, providing code examples and notes to help customize NLQ-generated Simply Ask widgets.
Limiting Date Range Filters in Sisense Dashboards
Wide date ranges in Sisense dashboards can lead to performance issues, especially when using live models or querying large datasets. For live data models, large queries increase costs as more data is pulled from the data warehouse. For Elasticubes, this can cause performance bottlenecks. To avoid these issues, here is a quick solution to "limit" the date range users can select, ensuring both cost-efficiency and smooth performance. Read more to find out how!Plugin - customLogoLink
Plugin - Set Custom Link Overriding default In Top Left Logo Icon Description This plugin allows changing the link of the top-left Sisense or white-labeled logo on the server's home page to a custom URL. Disabling the plugin will restore the logo link to its default behavior. Installation To install this plugin, download and unzip the attachment. Then drop the disableLogoLink folder into your plugins folder (/opt/sisense/storage/plugins). Enable the plugin on the Add-ons tab in the Admin section, wait for the plugin to build, and the plugin will be enabled. The plugin API and file management UI can also be used. Config Options - URL - URL navigated to on logo click - iframeLogoLinkChangeParentAddress - Boolean option allows logo click to change the parent address of a Sisense Iframe. It should be noted that JTD uses an iframe Notes This plugin is similar to the DisableLogoLink plugin which is documented here this page includes notes on creating plugins similar to this one. Learn more: https://docs.sisense.com/main/SisenseLinux/pre-post-build-plugins.htm https://academy.sisense.com/master-class-advanced-dashboards-with-plug-ins-and-scriptsLeveraging Sisense Notebooks with Compose SDK
Discover how to enhance your analytics integration with Sisense Notebooks and the Compose SDK. This article explores a code-first approach to creating custom datasets and visualizations using SQL, empowering data teams to leverage their existing skills. Learn how to seamlessly embed tailored insights into customer-facing applications, streamlining workflows for both analysts and developers. Unlock the potential of your data with Sisense, delivering impactful, personalized analytics that meets your organization’s unique needs.Conditional Coloring with Scripting in Sisense Polar Bar Charts

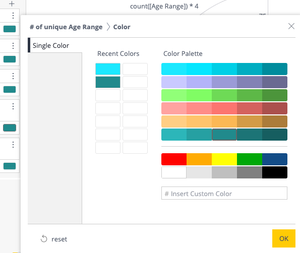

Enhance Sisense polar charts with custom conditional coloring using a script. Apply dynamic colors to bars based on value thresholds (e.g., red for high, yellow for medium, green for low) to improve data visualization and interpretation.UserReplaceTool - Automating Dashboard Ownership Transfers - Useful for Deleting User Accounts

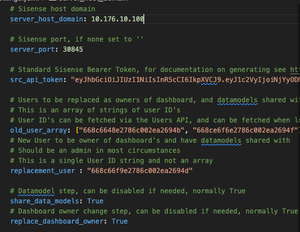

Managing and deleting user accounts in Sisense can create manual processes when users leave an organization or change roles. A frequent issue is the reassignment of dashboard ownership to prevent losing Sisense dashboards when a given user account is deleted, as deleting a Sisense user will delete all dashboards owned by that user. The UserReplaceTool addresses this task by automating the transfer of dashboard ownership of all dashboards owned by a given user, ensuring continuity and data integrity. UserReplaceTool is a Python-based, API-based Tool solution designed to seamlessly transfer the ownership of dashboards and data models from one user to another in Sisense. This tool simplifies and automates this process, allowing organizations to reassign dashboard ownership without manual processes or the risk of losing dashboards and widgets. All components are accomplished by using Sisense API endpoint requests.Using the InternalHttp Function Within Scripts and Plugins
The InternalHttp function is a Sisense function within the Sisense internal Prism object. The prism object and the InternalHttp function is present on all Sisense pages, and can be used in scripts and plugins, including when embedded with various forms of Sisense embedding. It facilitates custom additional API requests to the Sisense server by applying the same request headers used for internal Sisense requests to handle details of API requests such as authentication, CORS, and CSRF.
