Bar Chart - Prevent bars from hiding the value label text

When creating a bar chart and formatting it to include "Values",  you might find out that the bars cover their values. The following (widget) code manipulates the bars' width and label position:

const labelWidth = 25 + 5 // 5 is the space between the label and the bar

widget.on('domready', function(widget) {
  try {
    console.log('DOM Ready script starting (wid=' + widget.oid + ')');

    // Get plot width
    plotWidth = parseInt(widget.chart[0].getElementsByClassName('highcharts-plot-border')[0].getAttribute('width'));

    // Find Widest bar
    maxBarWidth = -1;
    widget.chart[0].getElementsByClassName('highcharts-series','highcharts-bar-series').forEach(bar => {
      bar.childNodes.forEach(rect => {
        if (parseInt(rect.getAttribute('height')) > maxBarWidth)
        maxBarWidth = parseInt(rect.getAttribute('height'))
      })
    })

    if (maxBarWidth == -1) return;

    // Check if we require adjustment
    if (plotWidth - maxBarWidth > labelWidth) return;

    ratio = (maxBarWidth - labelWidth) / maxBarWidth;

    // Adjust Bar height and location
    barsArray = widget.chart[0].getElementsByClassName('highcharts-series','highcharts-bar-series');
    labelsArray = widget.chart[0].getElementsByClassName('highcharts-data-labels');

    for (let seriesNum = 0; seriesNum < barsArray.length; seriesNum++) {
      for (let barNum = 0; barNum < barsArray[seriesNum].childNodes.length; barNum++) {
        currentWidth = parseInt(barsArray[seriesNum].childNodes[barNum].getAttribute('height'));
        currentY = parseInt(barsArray[seriesNum].childNodes[barNum].getAttribute('y'));
        transformLabel = labelsArray[seriesNum].childNodes[barNum].getAttribute('transform')

        // Calculate offset
        offset = Math.round(currentWidth * (1-ratio))

        // Adjust bars
        barsArray[seriesNum].childNodes[barNum].setAttribute('height',currentWidth-offset)
        barsArray[seriesNum].childNodes[barNum].setAttribute('y',currentY+offset)

        // Adjust labels
        newLabel = 'translate(' + (currentWidth - offset) + ',' + transformLabel.split(',')[1]
        labelsArray[seriesNum].childNodes[barNum].setAttribute('transform',newLabel)
      }
    }
  }
  catch (error) {
    console.error(error);
  }
  finally {
    console.log('DOM Ready script complete (wid=' + widget.oid + ')');
  }
});

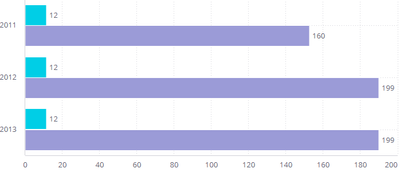

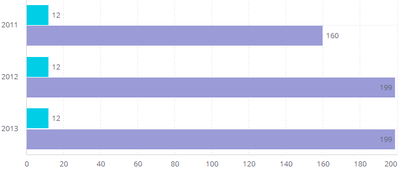

Before After
Updated 03-25-2022

9 Comments

    • Ophir_Buchman's avatar
      Ophir_Buchman
      Data Integration
      04-27-2022

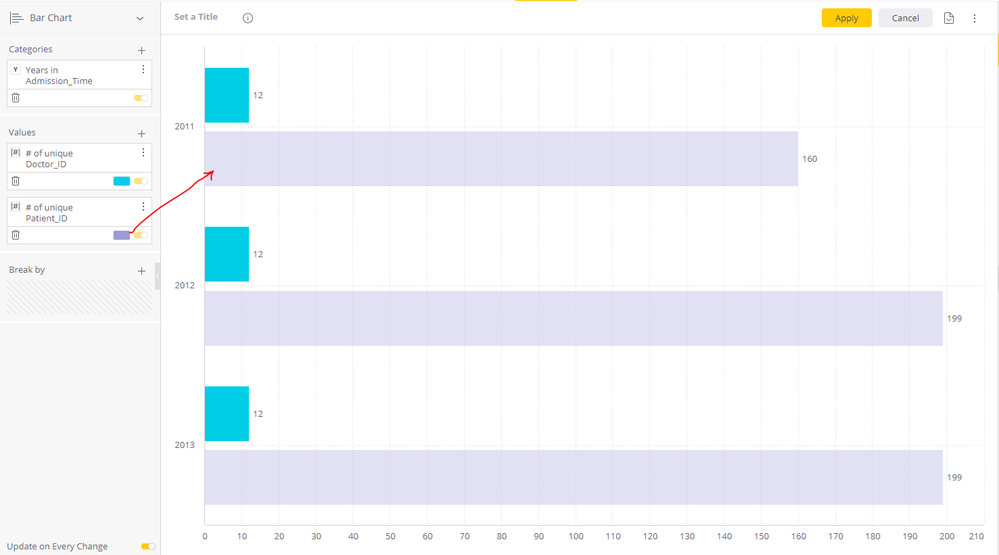

      Hi cartercjb

      In 'domready' - Perform the following:

      $('.highcharts-series.highcharts-series-1')[0].childNodes.forEach(item => item.setAttribute('opacity',0.3))





  • BIQ's avatar
    BIQ
    Cloud Apps
    06-16-2022

    How can we get this code to work on column charts as well?

  • fabricio_fta's avatar
    fabricio_fta
    Data Storage
    08-15-2023

    How this code could also work for negative bar charts? For us, it's working fine for positive values, but for negative values, it does not.

    Example:

    We would like that the numbers once inside the bar would be white as the third bar is and once they out they would be gray the first bar is.

  • Jake_Raz's avatar
    Jake_Raz
    ETL
    07-12-2024

    Hello! This script doesn't seem to work on stacked bar charts. On regular (non-stacked) bar charts it mostly works as expected, and I can adjust the number in the first line to adjust how much space there is. However, when I try the same script on stacked bar charts, it doesn't seem to have any effect, regardless of which number I put in the first line.

    I bet it's due to the break-by splitting the bars into multiple stacked bars, and the script is only designed to shorten single bars. Is there a way to modify the script so it works on stacked bars instead?

    • TriAnthony's avatar
      TriAnthony
      Admin
      08-02-2024

      Hi fabricio_fta and Jake_Raz, please try this script below. This should work for:

      • all Cartesian charts (Column, Bar, Line, and Area charts),
      • negative values,
      • single and multiple series (classic or stacked, using Break By or multiple values).



      /***  This script is for increasing the y-axis max value by adding a percent of the highest value in the series to the y-axis max value.
Similarly, in cases where the minimum value is negative, it also decreases the y-axis min value by subtracting a percent of the lowest value in the series from the y-axis min value. ***/

//Set the offset percent to add/subtract to/from the y-axis max/min value here
var percentToAdd = 20;

widget.on('processresult', function(se,ev){

	var numberOfSeries = ev.result.series.length;

	var seriesData = [];

	var dataPoints = [];

	for(i=0; i < numberOfSeries; i++) {

		seriesData[i] = ev.result.series[i].data;

		var numOfDataPoints = seriesData[i].length;

		if(widget.subtype.includes('stacked')) {

			if(i==0) {
				for(j=0; j < numOfDataPoints; j++) {

					var dataToPush = seriesData[i][j].y;

					dataPoints.push(dataToPush);
				}
			}
			else {
				for(j=0; j < numOfDataPoints; j++) {

					dataPoints[j] = dataPoints[j] + seriesData[i][j].y;
				}
			}
		}

		else if(widget.subtype.includes('classic') || widget.subtype.includes('basic')) {

			for(j=0; j < numOfDataPoints; j++) {

				var dataToPush = seriesData[i][j].y;

				dataPoints.push(dataToPush);
			}
		}
	}

	var maxValue = Math.max.apply(Math, dataPoints);

	var minValue = Math.min.apply(Math, dataPoints);


	if(ev.result.yAxis[0].max <= 0) {
		ev.result.yAxis[0].max = 0
	}
	else {
		ev.result.yAxis[0].max = maxValue * (1 + percentToAdd/100);
	}

	if(ev.result.yAxis[0].min >= 0) {
		ev.result.yAxis[0].min = 0;
	}
	else {
		ev.result.yAxis[0].min = minValue * (1 + percentToAdd/100);
	}


})
