How to Change the Pivot Header Row Style with TransformPivot
How to Change the Pivot Header Row Style with TransformPivot
This solution is based on Pivot 2.0 API supported in Sisense version L8.2.1 or later (not supported in Sisense for Windows).
For this solution, we shall use cellStyle from Pivot 2.0 API. The following options are available to adjust the cell style:
| Name | Type | Description |
| fontSize | number or string | Text size |
| fontWeight | number or string | Text weight |
| fontStyle | string | Text style |
| lineHeight | string | Text line height |
| textAlign | string | Text alignment: 'left', 'right' or 'center' |
| color | string | Text color |
| backgroundColor | string | Cell background color |
| padding | number or string | Cell padding |
| borderWidth | number | Cell border width |
| borderColor | string | Cell border color (with CSS fallback) |
Below I provide a widget script that identifies the first row in the pivot widget and utilizes transformPivot to replace the existing cell style with the new backgroundColor, color, and textAlign. Other cellStyle parameters can be set as in the example script.
widget.transformPivot({},
(metadata, cell) => {
if (metadata.rowIndex === 0) {
cell.style = cell.style || {};
cell.style.backgroundColor = '#0057B7'; //sets cell background color
cell.style.color = '#FFDD00'; //sets cell text color
cell.style.textAlign = 'right'; //sets cell text align
};
}
);

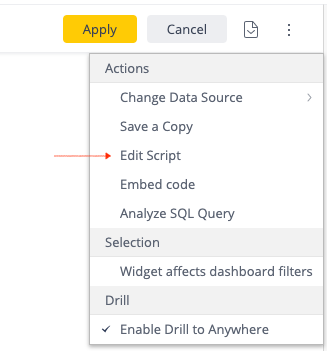

To utilize the script, open the pivot widget in edit mode, use the three dots menu, and choose "Edit Script".
Paste the script, save the changes, and refresh the dashboard.

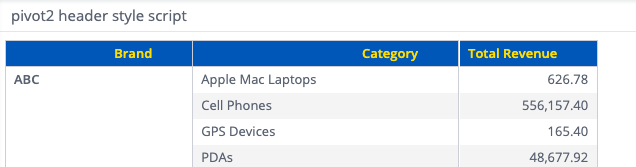

Enjoy the result!
