Sisense BloX Database Writeback

This guide demonstrates setting up a simple BloX widget to enable front-end users to write data back to the database. While this guide specifically uses AWS lambda to execute a SQL update statement, the general flow can be adapted depending on your setup and needs.

In this guide, we are looking at an example use case of a salesperson adding notes to an opportunity from Sisense. The complete source code can be found in this repository.

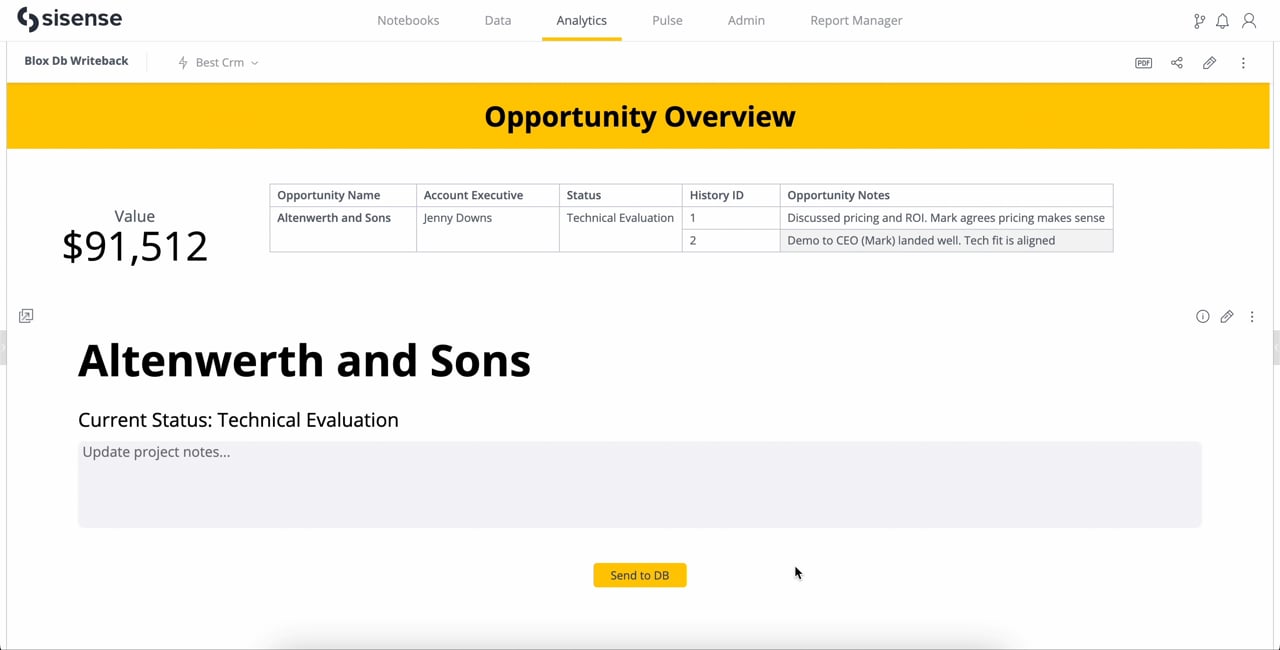

See it in action

Note: This is a live connection with a refresh rate of 5 seconds to demonstrate the writeback

How it works: Quick Implement

Follow these steps to create this BloX widget in your own environment:

1. Download the following files:

• BloxTemplate-DbWriteback.json
• BloxAction-DbWriteback.js

  2. Create a widget type of BloX and upload a template Tutorials - See 'Exporting and Importing BloX Templates
  3. Create a custom action in Blox, copy the contents of BloxAction-DbWriteback.js into this action, and make changes to your API.

Overview

The general flow that enables database writeback is as follows:

1. BloX widget contains an input field and submit button.
2. Submit button triggers a custom action, sending data from the input to a REST API.
3. REST API executes the backend script to write data from the input field to the database.

BloX

The BloX widget is composed of two parts, the JSON editor script, and the JS action script.

• The JSON editor script defines the visual appearance of the widget, the input field and submit button, the data accessible to the action script, and when the action script is called.
• The JS action script controls the interaction between Sisense and the REST API. Here we define the URL of the API along with the data we are sending.

Editor - JSON

The key components in the BloX editor to focus on are the input container and the submit button. The code snippets below contain the relevant components.

First, our input field is created with "type": "Input.Text" and we use "id": "data.note" to make the user input accessible from the back end.

• Note: Cloud Data Warehouses typically have APIs set up to accept SQL statements. These can be used in place of setting up your own REST API and backend service.
1. Database security and schema are set up appropriately to accept update statements from the backend service.



{
"type": "Container",
"items": [
{
"spacing": "medium",
"type": "TextBlock",
"text": " ",
"color": "black"
},
{
"type": "Input.Text",
"id": "data.note",
"placeholder": "Update project notes...",
"isMultiline": true,
"rows": "4",
"borderRadius": "8px",
"borderStyle": "none",
"backgroundColor": "#F4F4F8"
}
]
}





{
"type": "ActionSet",
"actions": [
{
"type": "updateDb",
"title": "Send to DB",
"data": {
"id": "{panel:id}"
}
}
]
} 



Action - Javascript

The Action defines the behavior that is performed after the button is clicked. The script below first calls a POST request and then redraws the widget to remove the note from the input box.

For our post request to work, we need to add the URL of the API that will accept our POST request along with adding the data we are sending in the body. Here, we are sending the opportunity id along with the note the user entered in the input box.

  

url = 'rest-api-url'

const insertOpportunityNote = () => {
fetch(url, {
method: 'POST',
headers: {
'Content-Type': 'application/json'
},
body: JSON.stringify({
'id': `${payload.data.id}`,
'note': `${payload.data.note}`
})
})
.then(response => response.json())
.then(response => console.log(JSON.stringify(response)))
}
insertOpportunityNote()
payload.widget.redraw()
// console.log(payload.data)



Most CDWs have APIs that could be leveraged here, such as Snowflake's SQL API. Custom APIs can also be used, which we will explore in the next section. Regardless, CORS must be set up to accept requests from your Sisense IP.

API & Backend

For this example, AWS Lambda and Amazon API Gateway were used in conjunction to create the REST API functionality that writes to our database.

API Gateway

After your Lambda function and API Gateway are connected (Using Lambda with API Gateway), double-check that CORS is handled correctly in the API. The following headers with correct values must be configured to allow traffic from your Sisense IP.

• Access-Control-Allow-Headers
• Access-Control-Allow-Methods
• Access-Control-Allow-Origin

Lambda

Our Lambda function uses the psycopg2 library to write to a postgres database. This requires three steps: establish the database connection, execute our insert statement, return a response.

The lambda function accepts the event from the API gateway, extracts the data that was sent from Sisense, then creates our connection.

 

# Retrieve the necessary details to connect to the PostgreSQL database
db_host = "your-db-url"
db_port = "5432"
db_name = "mydb"
db_user = "postgres"
db_password = "postgres"

# Retrieve the details of the record to be inserted
db_table = "opportunity_notes"
db_col1_name = "opportunity_id"
db_col1_value = event['id']
db_col2_name = "note_text"
db_col2_value = event['note']

# Connect to the PostgreSQL database
conn = psycopg2.connect(
host=db_host,
port=db_port,
dbname=db_name,
user=db_user,
password=db_password
)
cur = conn.cursor()



# insert query
insert_query = f'''
INSERT INTO {db_table} ({db_col1_name}, {db_col2_name})\
VALUES(%s, %s)'''
# Values for the insert query
insert_values = (db_col1_value, db_col2_value)

# Execute the insert query
cur.execute(insert_query, insert_values)

# Commit the changes
conn.commit()







Final Thoughts

This example of database writeback is very basic. Ideas for enhancing this include:

• Enable BloX to post updates for multiple items
• Add the name or email of the Sisense user to their writeback request for visibility into who created the note
• Enhance security by adding authorization requirements to API Gateway
• Implementing standards in the database to indicate writeback tables
