Trend lines (menu based)
Use this extension to plot a regression line within a chart. It works for Line, Bar, Column and Scatter charts. It is menu driven and does not require any script to be written. It will plot a regression line for each series in the chart data set. Developed as of vs. 6.4.1
Step-by-Step Guide:
Step 1 - Add the plugin
Linux:
1. Download the TrendLine.zip file
2. Install the add-on in either one of the following ways:
- Extract the contents of the .zip folder to the relevant directory below:
/opt/sisense/storage/plugins/
OR
- Select Admin > Server & Hardware > System Management > File Management, and add it to Plugins.

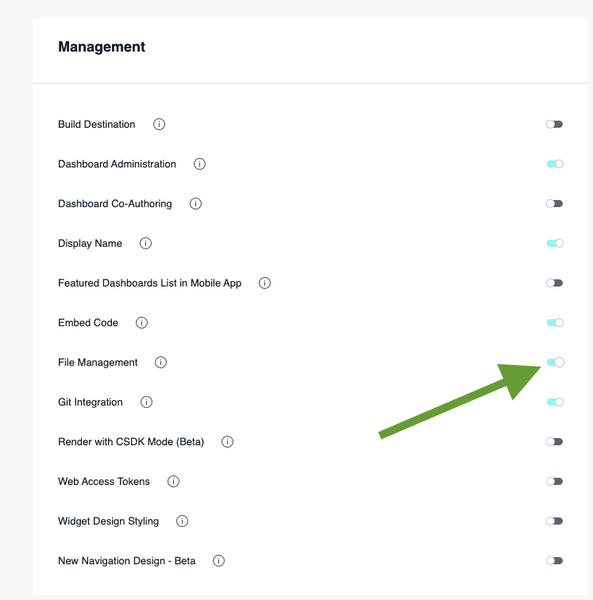

NOTE: If File Manager is not enabled, enable it at Admin > App Configuration > Feature Management: https://docs.sisense.com/main/SisenseLinux/feature-management.htm
3. You may need to wait for up to 5 minutes for the plugin to activate
4. Reload the dashboard for the plugin to appear
Windows:
Download the TrendLine.zip file and unzip the contents into your C:\Program Files\Sisense\PrismWeb\plugins\ folder. If you are using version 7.2 and higher unzip the contents into your C:\Program Files\Sisense\app\plugins\ folder.
Step 2 - Create or edit your chart

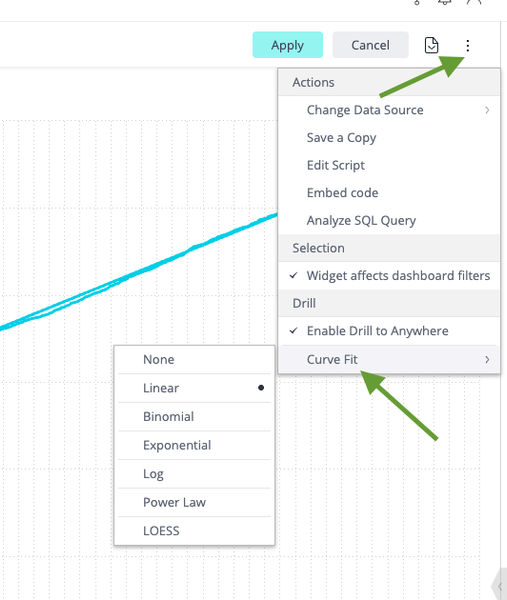

Choose Curve Fit > menu option from the options menu in the chart edit window. Select the desired regression model.
The regression line will be rendered within the chart.
Updated:
June 12, 2017 - Power Law Regression Option Added
Aug 16, 2018 - LOESS Option Added by Jack Ingoldsby
Last verified:
Version L2025.3.0.338
