Sometimes there is a need to display a solid line on the chart without using the "Display missing values as zeros" function. Here is a widget script that will read the average value between two neighboring points and draw a line.
<font face="courier new,courier" size="2"><span>widget.on('processresult', function(widget, result) {</span></font><br/><br/><font face="courier new,courier" size="2"><span> const series = result.result.series;</span></font><br/><br/><br/><br/><br/><font face="courier new,courier" size="2"><span> for (let j = 0; j < series.length; j++) {</span></font><br/><br/><font face="courier new,courier" size="2"><span> const data = series[j].data;</span></font><br/><br/><br/><br/><br/><font face="courier new,courier" size="2"><span> for (let i = 0; i < data.length; i++) {</span></font><br/><br/><font face="courier new,courier" size="2"><span> if (data[i].y === null) {</span></font><br/><br/><font face="courier new,courier" size="2"><span> let leftIndex = i - 1;</span></font><br/><br/><font face="courier new,courier" size="2"><span> let rightIndex = i + 1;</span></font><br/><br/><br/><br/><br/><font face="courier new,courier" size="2"><span> while (leftIndex >= 0 && data[leftIndex].y === null) {</span></font><br/><br/><font face="courier new,courier" size="2"><span> leftIndex--;</span></font><br/><br/><font face="courier new,courier" size="2"><span> }</span></font><br/><br/><br/><br/><br/><font face="courier new,courier" size="2"><span> while (rightIndex < data.length && data[rightIndex].y === null) {</span></font><br/><br/><font face="courier new,courier" size="2"><span> rightIndex++;</span></font><br/><br/><font face="courier new,courier" size="2"><span> }</span></font><br/><br/><br/><br/><br/><font face="courier new,courier" size="2"><span> const leftValue = leftIndex >= 0 ? data[leftIndex].y : null;</span></font><br/><br/><font face="courier new,courier" size="2"><span> const rightValue = rightIndex < data.length ? data[rightIndex].y : null;</span></font><br/><br/><br/><br/><br/><font face="courier new,courier" size="2"><span> if (leftValue === null && rightValue === null) {</span></font><br/><br/><font face="courier new,courier" size="2"><span> data[i].y = 0; // You can change this default value</span></font><br/><br/><font face="courier new,courier" size="2"><span> } else {</span></font><br/><br/><font face="courier new,courier" size="2"><span> const average = ((leftValue || 0) + (rightValue || 0)) / 2;</span></font><br/><br/><br/><br/><br/><font face="courier new,courier" size="2"><span> data[i].y = average;</span></font><br/><br/><font face="courier new,courier" size="2"><span> }</span></font><br/><br/><font face="courier new,courier" size="2"><span> }</span></font><br/><br/><font face="courier new,courier" size="2"><span> }</span></font><br/><br/><font face="courier new,courier" size="2"><span> }</span></font><br/><br/><font face="courier new,courier" size="2"><span>});</span></font>

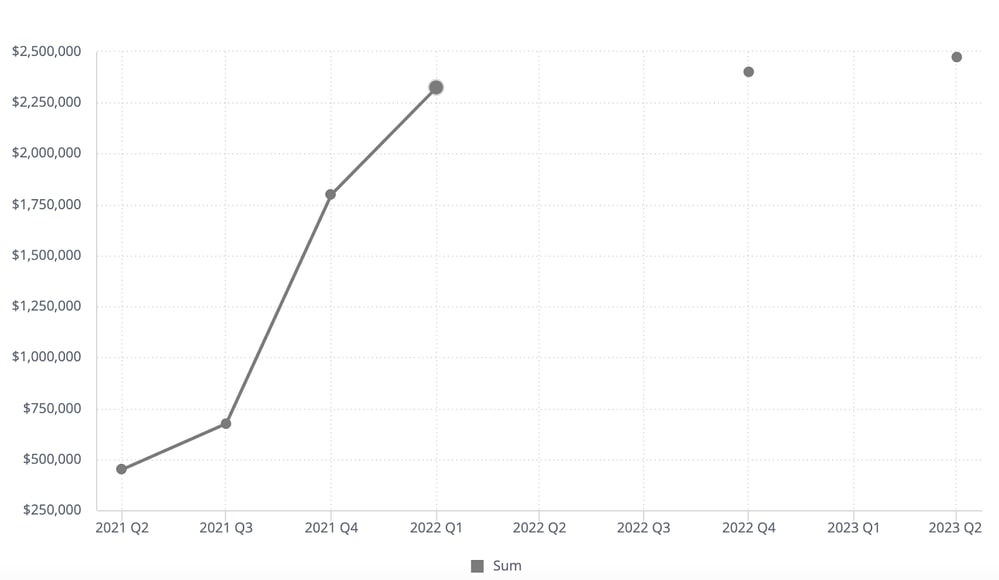

Before:

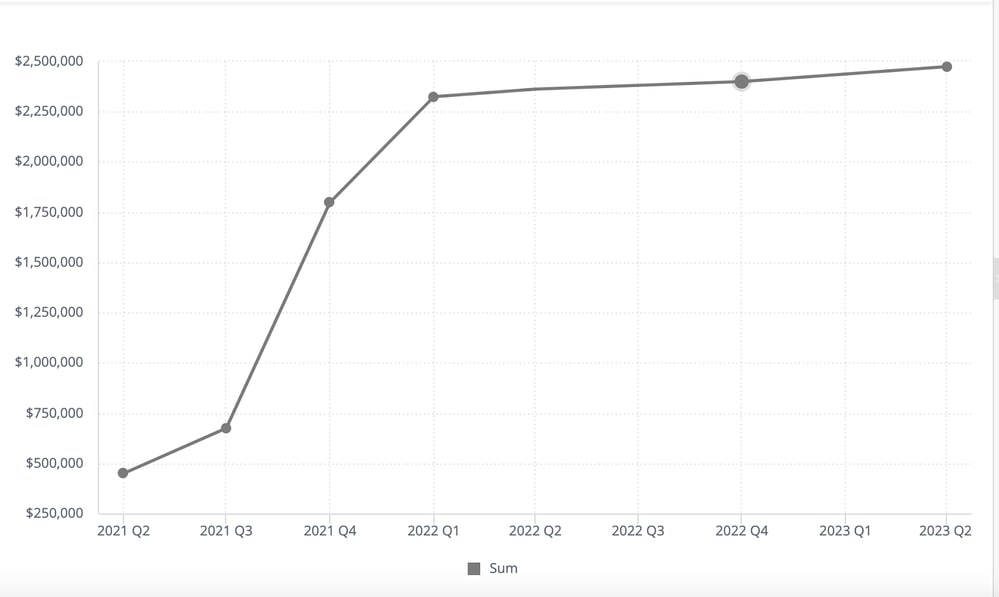

After:
Leave a comment if this helped or if you need further assistance!
