Dashboards Using Audit Logs

Hi Team,

I need to create a cube using Audit logs, can someone help me with how we can connect Logs with Elastic cubes

https://documentation.sisense.com/docs/audit-logs

Thanks

Nazeer

Code-first Analytics
Technology
  • KatieG's avatar
    KatieG
    04-05-2022

    Hi Nazeer,

    The audit logs are located in /opt/sisense/storage/audit

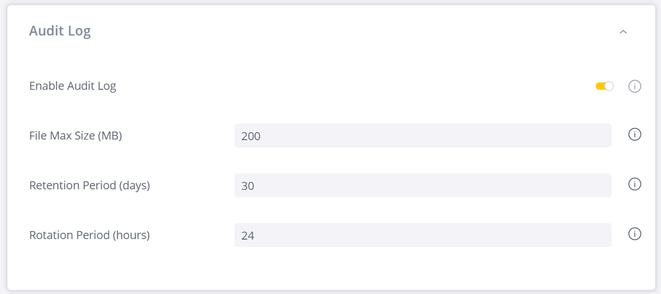

    These logs will rotate every 24 hours or when the max file size has been reached:

    I've attached a sample model that could be used to get started.

    To create the connection from scratch, create an elasticube and add the data as CSV

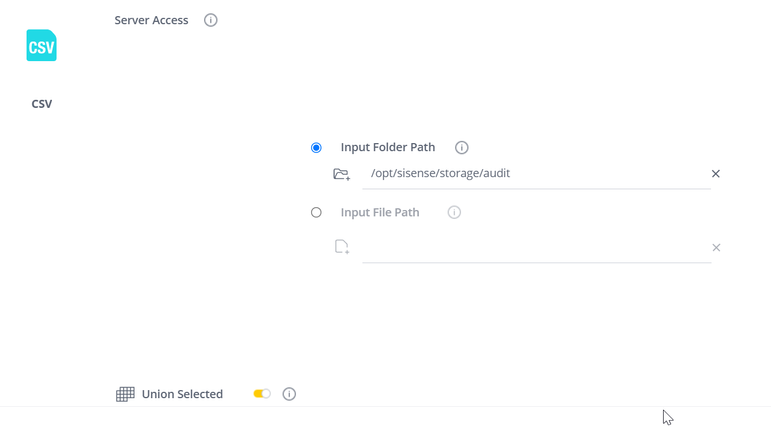

    Choose "Server Access"
    Add the input folder path as /opt/sisense/storage/audit
    And toggle on "Union Selected"

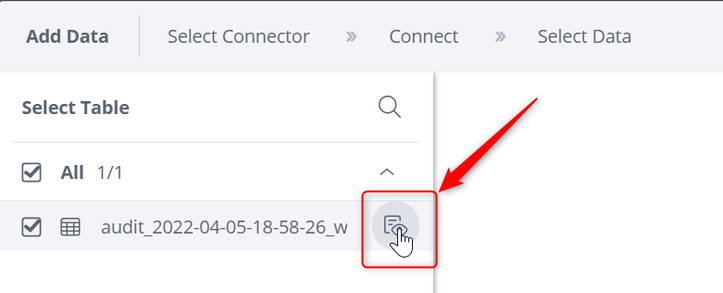

    Select the checkbox next to the file name then hit preview to edit the fields

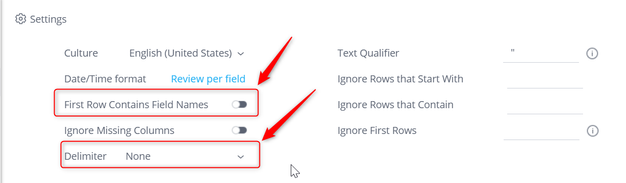

    Toggle off the "First Row Contains Field Names" and set the Delimiter to "None"

    Then click 'Done'

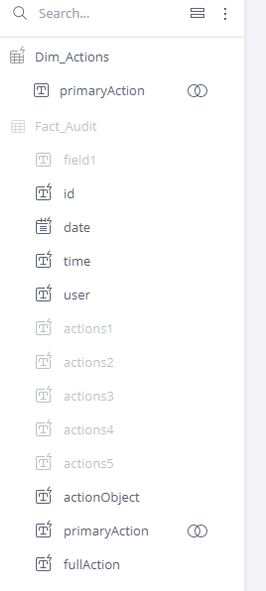

    This process results in one long string per row. Using custom columns, we can parse the contents of the string into timestamps, users, actions, and action objects.

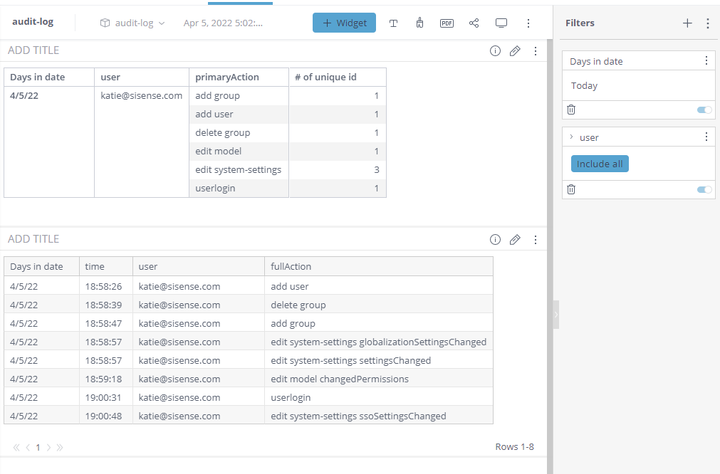

    An example of a dashboard:

    Hope that helps!

3 Replies

Replies have been turned off for this discussion
  • KatieG's avatar
    KatieG
    Sisense Employee
    04-05-2022

    Hi Nazeer,

    The audit logs are located in /opt/sisense/storage/audit
    These logs will rotate every 24 hours or when the max file size has been reached:

    I've attached a sample model that could be used to get started.

    To create the connection from scratch, create an elasticube and add the data as CSV
    Choose "Server Access"

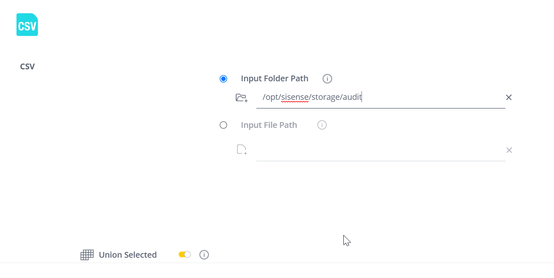

    Add the input folder path as /opt/sisense/storage/audit
    And toggle on "Union Selected"

    Select the checkbox next to the file name then hit preview to edit the fields

    Toggle off the "First Row Contains Field Names" and set the Delimiter to "None"

    Then click 'Done'

    This process results in one long string per row. Using custom columns, we can parse the contents of the string into timestamps, users, actions, and action objects.

    An example of a dashboard:

    Hope that helps!

  • Nazeer's avatar
    Nazeer
    Cloud Apps
    04-11-2022

    Great Thanks for the help, but how to automate the daily files to fetch into Cube ?

    Will that UnionSelected Helps me in doing that ?

    Nazeer

    • KatieG's avatar
      KatieG
      Sisense Employee
      04-11-2022

      Hi Nazeer , using the "Union Selected" option on the data connection screen will UNION all of the files in that folder path together - so you don't need to worry about adjusting the connection each day, it will pull all files

      Keep in mind that the default setting is 30 days of data, this can be adjusted to longer periods of time but if you need to keep for example 6 months or more of audit data, we recommend either:

      • Create a copy task to copy these files to another location for long term storage
        -OR-
      • Use this API to download the audit data: GET /api/v2/audit

      Hope that helps!
