Bar Chart - Rename Categories/Break-By

When creating a bar chart you'd sometimes want to rename the categories/break-by fields

Modify the "Break-By" Category Names

Apply the following widget script:

widget.on('processresult', function(widget,result) {
  // Translation Dictionary
  let dict = {'1':'January', '2':'February', '3':'March', '4':'April', '5':'May', '6':'June', '7':'July', '8':'August', '9':'Septempber', '10':'October', '11':'November', '12':'December'}

  result.result.series.forEach(function(ser) {
    ser.name = dict[ser.name]
  })
})

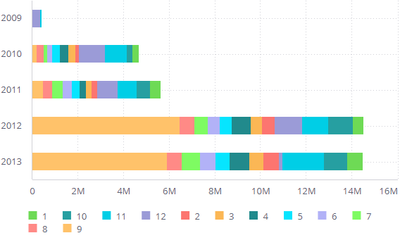

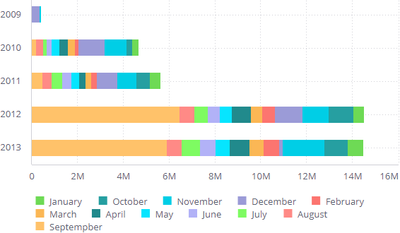

Before	After

Modify the "Category" Names

Apply the following widget script:

widget.on('processresult', function(widget,result) {
  // Translation Dictionary
  let dict = {'1':'January', '2':'February', '3':'March', '4':'April', '5':'May', '6':'June', '7':'July', '8':'August', '9':'Septempber', '10':'October', '11':'November', '12':'December'}

  for (let i = 0 ; i < result.result.xAxis.categories.length ; i++) {
    result.result.xAxis.categories[i] = dict[result.result.xAxis.categories[i]]
  }
})

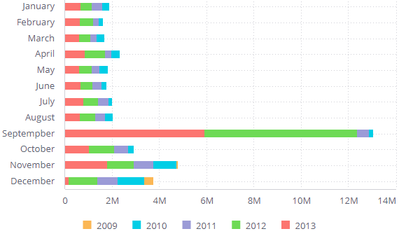

Before	After
