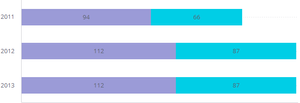

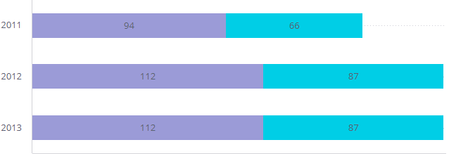

Bar Chart - Format a bar to have rounded corners

When creating a bar chart, you might want to design it to have rounded corners To round all corners - Apply the following widget script: widget.on('processresult',function(widget,result) { re...
dashboards & reporting
steve's avatar
steve
Sisense Employee
10-06-2022

Here's a simpler example of a widget script to do this.

It can also be used to set many other highcharts configuration options.

widget.on('beforeviewloaded', function(widget,element){

	var chartOptions = {
		"plotOptions" : {
			"series" : {
				"borderRadius": 10,
				"groupPadding": 0.25
			}}
	};

	element.options = $.extend(true, element.options, chartOptions);

});
