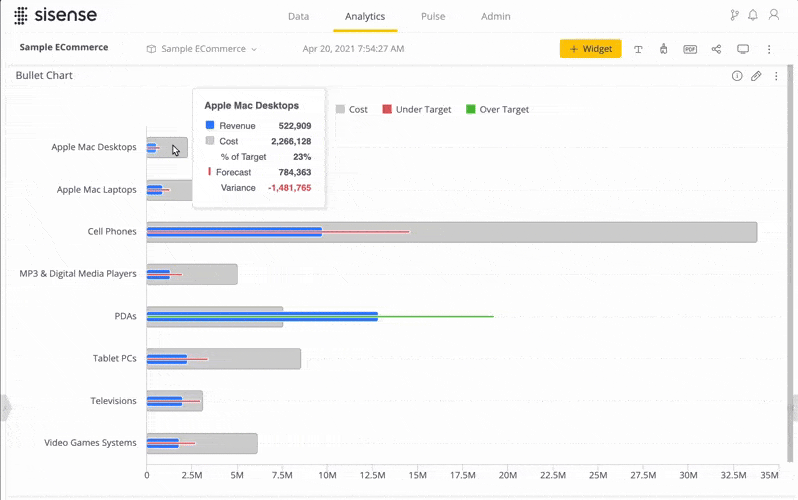

A Guide to Creating Bullet Charts

 Instructions:

1. Create a Bar Chart

2. Add your main Category (ex. 'Company')

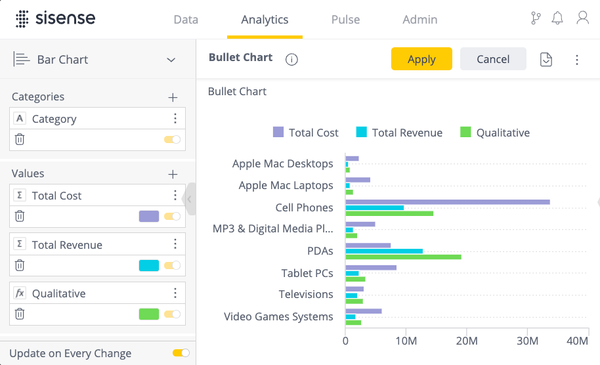

3. Add your three required measures:


   • Actual Value:  This is the primary metric you are measuring. It's the "what happened" value. (ex. YTD Revenue, Actual Spend, Units Sold)


   • Target Value: This is the goal or benchmark you are comparing against. It's the "what should have happened" value. (ex.  Sales Quota, Budget, Last Year's Revenue)


   • Qualitative Value (Forecast): This is a secondary comparative point, often used to show a projection. It's the "what we think will happen" value. (ex. Forecasted Spend, Projected Sales, Pipeline Value)

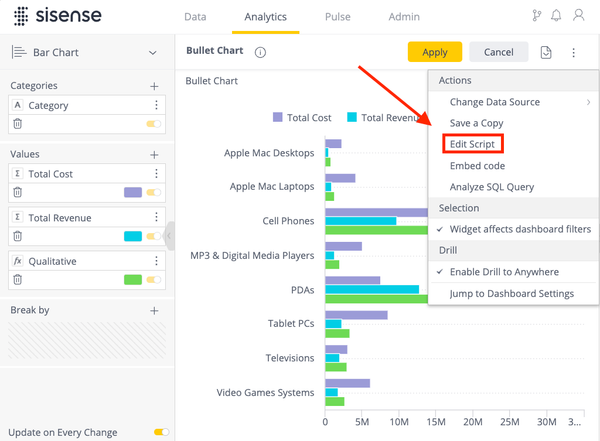

4.  Navigate to the widget's script editor:





5. Paste the script into the widget's script editor and follow instructions:

   */
   widget.on('processresult', function(widget, args) {

       // ========================================================
       //                         CONFIGURATION
       // ========================================================

       // --- Step 1: Field Names ---
       // These names MUST EXACTLY MATCH the names in your widget's Values panel.
       const actualValue_FieldName = 'Actual Value';
       const targetValue_FieldName = 'Target';
       const qualitative_FieldName = 'Qualitative';

       // --- Step 2: Chart Labels ---
       // These are the clean names that will show up in the legend and tooltips.
       const actualValue_DisplayName = 'Actual Value';
       const targetValue_DisplayName = 'Target';
       const qualitative_DisplayName = 'Qualitative'; // Used for the marker line

       // --- Step 3: Color Palette ---
       // Define the colors for your chart elements.
       const color_ActualValue = '#3682ff';      // Blue for the main 'Actual Value' bar.
       const color_TargetValue_Fill = '#d3d3d3';   // Light gray for the background 'Target' bar.
       const color_TargetValue_Border = '#a9a9a9'; // Darker gray for the border.

       // --- EDIT MARKER COLORS HERE ---
       // Control the colors for the forecast marker based on your goal.
       // By default, OVER target is red and UNDER is green (good for tracking costs).
       // To make OVER target green (good for tracking revenue), just swap the color hex codes below.
       const color_Marker_Over = '#e45c5c';       // Color for when Forecast > Target
       const color_Marker_Under = '#4dbd33';      // Color for when Forecast < Target




6. Add this directly underneath the script you just customized:



       if (!args.result || !args.result.series || args.result.series.length === 0) {
           return;
       }

       const result = args.result;
       const categories = result.categories;

       // Helper function to read data from your widget.
       const getDataBySeriesName = (name) => {
           for (let i = 0; i < result.series.length; i++) {
               if (result.series[i].name === name) {
                   return result.series[i].data.map(point => typeof point === 'object' ? point.y : point);
               }
           }
           console.warn('Field not found in widget data:', name);
           return new Array(categories.length).fill(0);
       };

       // --- DATA RETRIEVAL ---
       const actualValueData = getDataBySeriesName(actualValue_FieldName);
       const targetValueData = getDataBySeriesName(targetValue_FieldName);
       const qualitativeData = getDataBySeriesName(qualitative_FieldName);

       // Clear the default chart series to build our custom one.
       result.series = [];

       // --- PLOT OPTIONS ---
       result.plotOptions = {
           bar: {
               stacking: null,
               grouping: false,
               pointPadding: 0,
               groupPadding: 0.25, // Space between each bullet chart.
               borderWidth: 1,
               borderRadius: 3,    // Rounded corners for the bars.
               dataLabels: { enabled: false }
           }
       };

       // --- SERIES CONFIGURATION ---
       // 1. A hidden series to hold the raw qualitative data for the tooltip.
       result.series.push({
           name: qualitative_FieldName,
           type: 'bar',
           data: qualitativeData.map((val, index) => ({ x: index, y: val })),
           visible: false,
           showInLegend: false
       });

       // 2. Legend item for "Over Target".
       result.series.push({
           name: 'Over Target',
           type: 'line',
           color: color_Marker_Over,
           marker: { symbol: 'line', lineWidth: 4, radius: 5 },
           data: [],
           showInLegend: true
       });

       // 3. Legend item for "Under Target".
       result.series.push({
           name: 'Under Target',
           type: 'line',
           color: color_Marker_Under,
           marker: { symbol: 'line', lineWidth: 4, radius: 5 },
           data: [],
           showInLegend: true
       });

       // 4. The wide, background bar representing the Target value.
       result.series.push({
           name: targetValue_DisplayName,
           type: 'bar',
           data: targetValueData.map((val, index) => ({ x: index, y: val })),
           color: color_TargetValue_Fill,
           borderColor: color_TargetValue_Border,
           pointWidth: 30, // Thickness of the background target bar.
           zIndex: 0,
           states: { hover: { enabled: false } },
           showInLegend: true
       });

       // 5. The narrower, foreground bar representing the Actual value.
       result.series.push({
           name: actualValue_DisplayName,
           type: 'bar',
           data: actualValueData.map((val, index) => ({ x: index, y: val })),
           color: color_ActualValue,
           pointWidth: 15, // Thickness of the main actual value bar.
           zIndex: 1,
           showInLegend: true
       });

       // 6. The thin vertical line that marks the Qualitative/Forecast value.
       result.series.push({
           name: 'Qualitative Marker',
           type: 'bar',
           data: qualitativeData.map((val, i) => ({
               y: val,
               color: (val - targetValueData[i]) >= 0 ? color_Marker_Over : color_Marker_Under
           })),
           pointWidth: 3, // Thickness of the marker line.
           zIndex: 2,
           showInLegend: false,
           enableMouseTracking: false
       });

       // --- CHART & AXIS CONFIGURATION ---
       if (!result.chart) result.chart = {};
       result.chart.inverted = true; // Flips chart to be horizontal.
       if (result.yAxis.title) result.yAxis.title.text = ''; // Hides Y-axis title.
       if (result.xAxis.title) result.xAxis.title.text = ''; // Hides X-axis title.

       // --- LEGEND & TOOLTIP ---
       result.legend = { ...result.legend, enabled: true, reversed: true };
       result.tooltip = {
           enabled: true,
           shared: true,
           useHTML: true,
           backgroundColor: 'rgba(255, 255, 255, 1)',
           borderWidth: 1,
           borderColor: '#E0E0E0',
           formatter: function() {
               try {
                   if (!this.points || this.points.length === 0) return false;
                   const pointIndex = this.points[0].point.index;
                   const categoryName = this.x;
                   const chart = this.points[0].series.chart;
                   const actualVal = chart.series.find(s => s.name === actualValue_DisplayName).data[pointIndex].y;
                   const targetVal = chart.series.find(s => s.name === targetValue_DisplayName).data[pointIndex].y;
                   const qualitativeVal = chart.series.find(s => s.name === qualitative_FieldName).data[pointIndex].y;
                   const percentOfTarget = (targetVal === 0) ? 0 : (actualVal / targetVal);
                   const varianceVal = qualitativeVal - targetVal;

                   const varianceColor = varianceVal >= 0 ? color_Marker_Over : color_Marker_Under;

                   let s = `<div style="padding: 10px; font-family: 'lato', sans-serif; font-size: 13px;">`;
                   s += `<div style="font-size: 14px; margin-bottom: 10px; font-weight: 700;">${categoryName}</div>`;
                   s += `<table style="width: 100%;">`;
                   s += `<tr><td style="padding: 4px 2px;"><span style="background-color:${color_ActualValue}; width: 12px; height: 12px; border-radius: 2px; display: inline-block; margin-right: 8px;"></span>${actualValue_DisplayName}</td><td style="text-align: right; font-weight: 700;">${Highcharts.numberFormat(actualVal, 0, '.', ',')}</td></tr>`;
                   s += `<tr><td style="padding: 4px 2px;"><span style="background-color:${color_TargetValue_Fill}; border: 1px solid ${color_TargetValue_Border}; width: 12px; height: 12px; border-radius: 2px; display: inline-block; margin-right: 8px; box-sizing: border-box;"></span>${targetValue_DisplayName}</td><td style="text-align: right; font-weight: 700;">${Highcharts.numberFormat(targetVal, 0, '.', ',')}</td></tr>`;
                   s += `<tr><td style="padding: 4px 2px; padding-left: 24px;">% of Target</td><td style="text-align: right; font-weight: 700;">${Highcharts.numberFormat(percentOfTarget * 100, 0)}%</td></tr>`;
                   s += `<tr><td style="padding: 4px 2px;"><span style="background-color:${varianceColor}; width: 3px; height: 12px; border-radius: 2px; display: inline-block; margin-right: 8px; margin-left: 4px;"></span>${qualitative_DisplayName}</td><td style="text-align: right; font-weight: 700;">${Highcharts.numberFormat(qualitativeVal, 0, '.', ',')}</td></tr>`;
                   s += `<tr><td style="padding: 4px 2px; padding-left: 24px;">Variance</td><td style="text-align: right; font-weight: 700; color: ${varianceColor};">${Highcharts.numberFormat(varianceVal, 0, '.', ',')}</td></tr>`;
                   s += `</table></div>`;
                   return s;
               } catch (e) {
                   return 'Error creating tooltip.';
               }
           }
       };
   });


7. Save script and refresh the widget. You're done!
