Stacked Bar & Single Bar
Question:

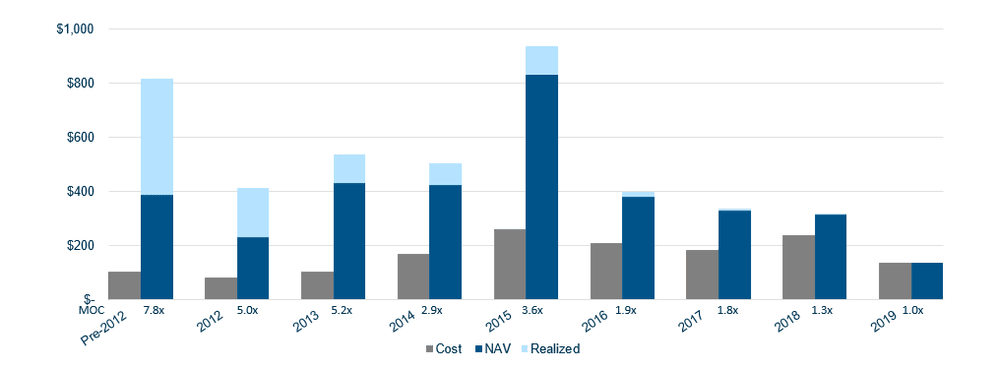

I want a Column Chart with 3 metrics- 2 of the metrics are stacked while one remains a single Column. I would even consider doing the 2 metrics stacked and the 3rd as a line, but if I choose 'Stacked' as my Column Chart Type, the ability to make the 3rd metric a line goes away.
Answer:
You can accomplish this task by taking the following steps:
- Add Metric A and Metric B to the Values of your column / bar chart per usual. Confirm there is a category included to act as our X axis (Y axis in the case of a bar chart).
- Toggle over to the "Design" pane of the widget on the top right hand side of the editor, next to the Filters pane. Select Column Type of "Stacked"
- Add Metric C to the Values of the column / bar chart. Click on the hamburger icon next to its name > show on right axis
- Click the hamburger icon next to its name again > Series type > Line
- Apply changes
1 comment
EricB10
·4 years agoHi,
I am looking to do something similar but I am not experiencing the same behavior. When I set the 3rd metric to Line, it actually turns into a Line overlaid on top the stacked bar (regardless if it is set to left or right Y-Axis).
I noticed this is a re-post from the old community site... is it possible the behavior described in this post is only for older versions of Sisense? I am on L2021.12 and I would think that the expected behavior is to actually see the 3rd metric as a Line.
What I ultimately seek to do is have 4 metrics, split between 2 stacked bars (2 metrics each).
Thank you!
